FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1991
>>
Sable V6-232 3.8L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>
Diagnostic Trouble Code Tests and Associated Procedures
>>
Manufacturer Code Charts
>>
5 Flashes - Short Forward Crash Sensor Deployment Ckt
5 Flashes - Short Forward Crash Sensor Deployment Ckt

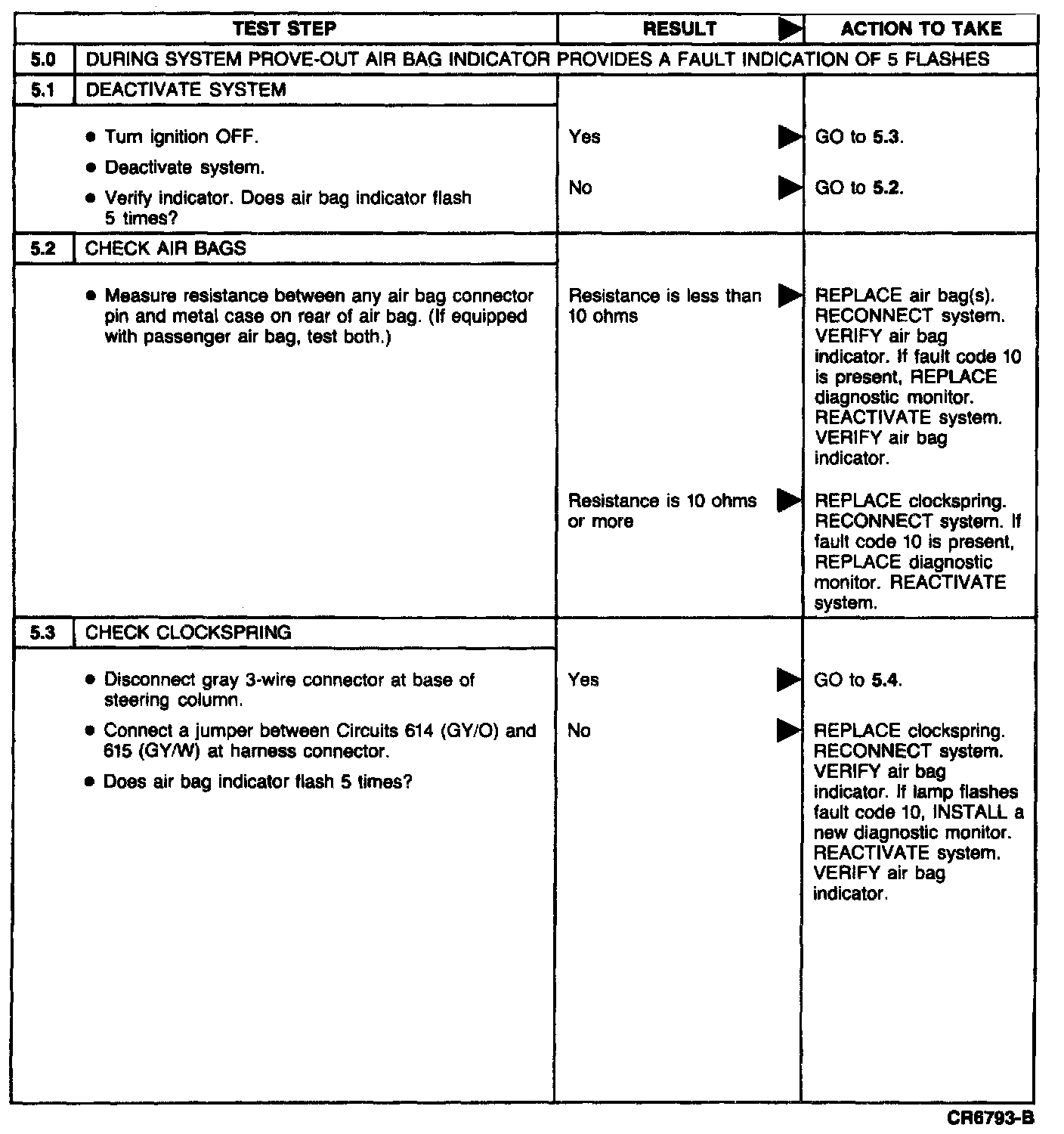

5.0-5.3:

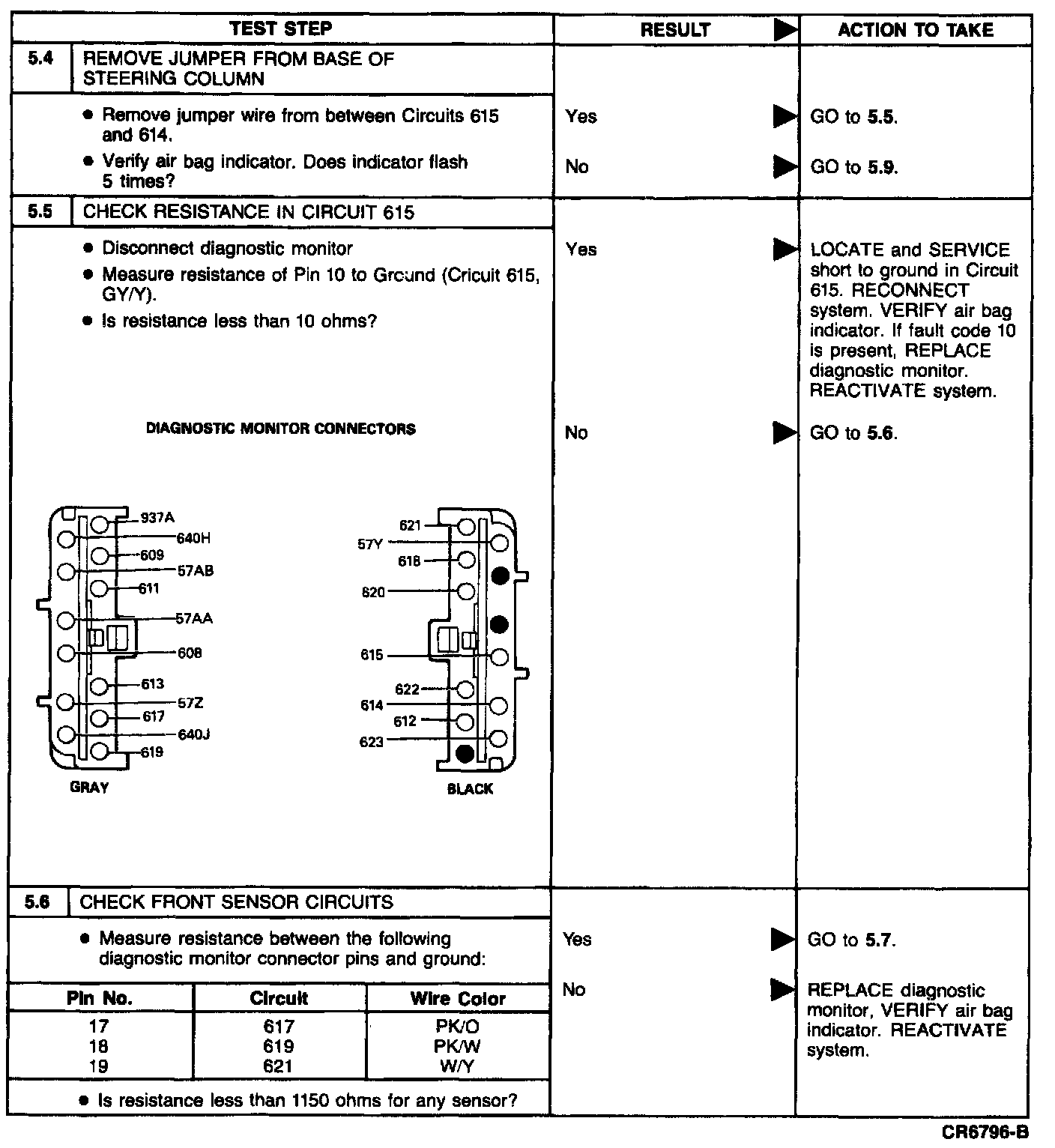

5.4-5.6:

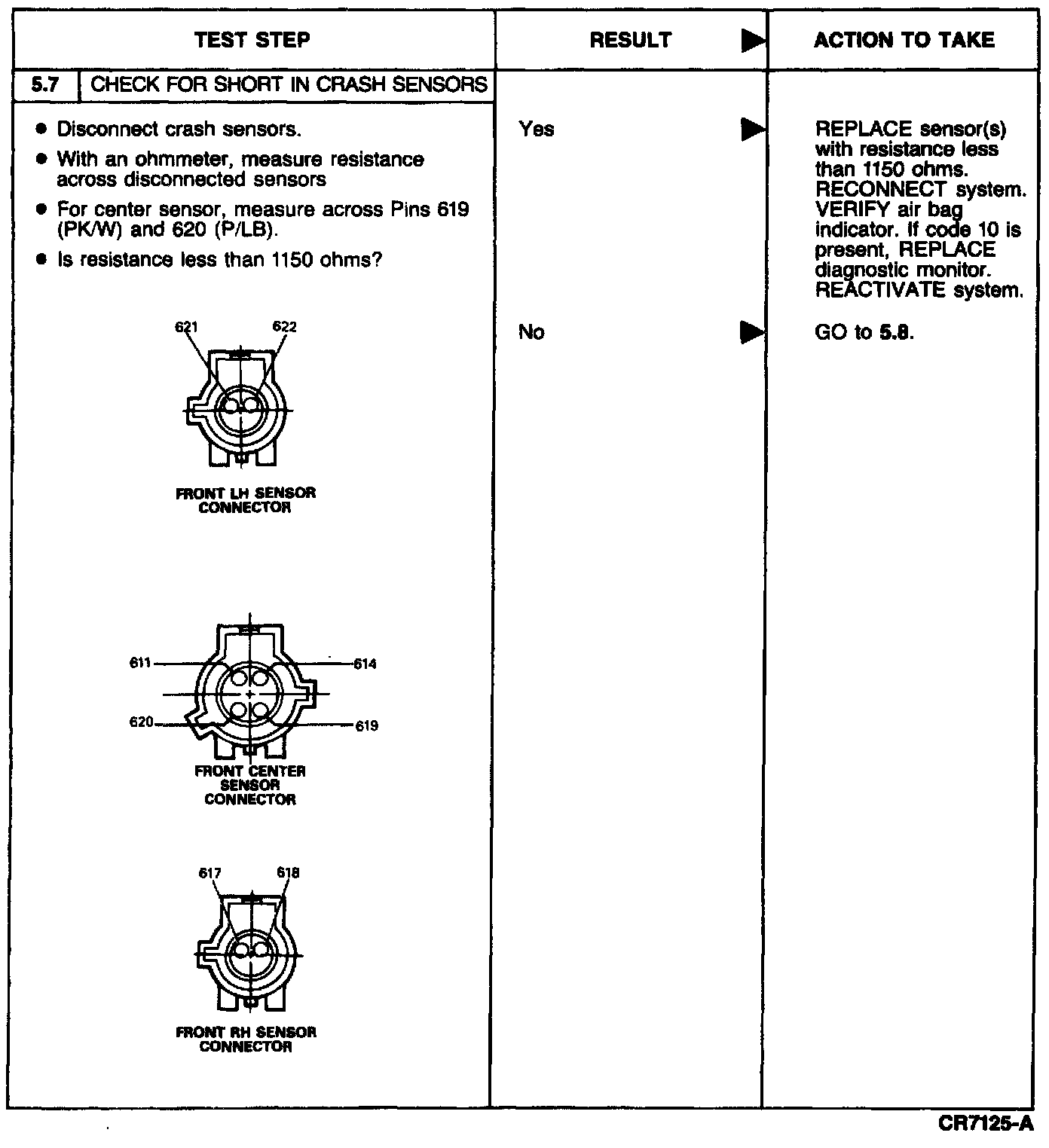

5.7:

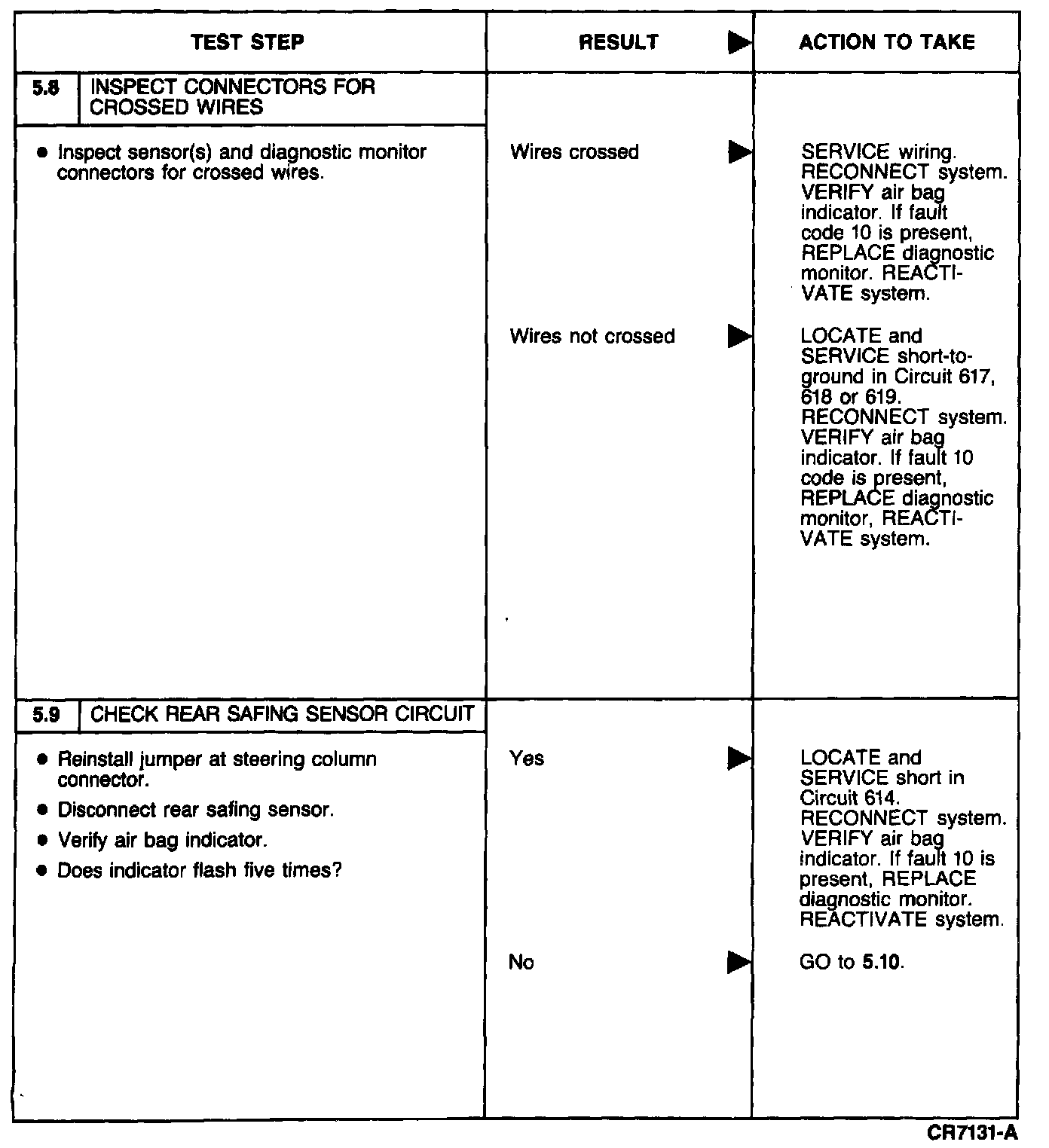

5.8-5.9:
5.10-5.11:
