Removal and Installation

NOTE: If the air bag did not deploy in an accident, it may not have been needed. Complete all diagnosis before replacing the air bag module.

WARNING: THE ELECTRICAL CIRCUIT NECESSARY FOR SYSTEM DEPLOYMENT IS POWERED DIRECTLY FROM THE BATTERY AND BACKUP POWER SUPPLY. TO AVOID ACCIDENTAL DEPLOYMENT AND POSSIBLE PERSONAL INJURY, THE BATTERY GROUND CABLE AND BACKUP POWER SUPPLY MUST BE DISCONNECTED PRIOR TO SERVICING OR REPLACING ANY SYSTEM COMPONENTS.

Removal

1. Disconnect battery ground cable and backup power supply.

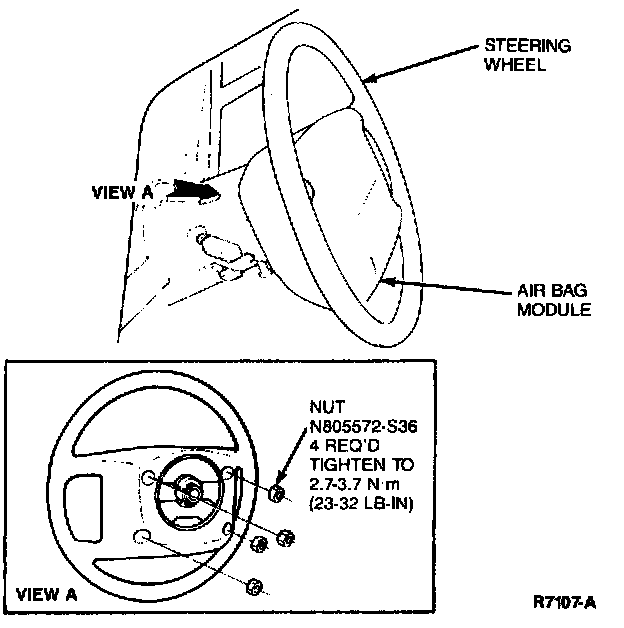

2. Remove four nut and washer assemblies retaining air bag module to steering wheel.
3. Disconnect the air bag electrical connector from contact assembly connectors. Remove air bag assembly.

Installation
1. Connect the air bag module wiring connector to contact assembly connectors.
2. Position air bag module to steering wheel and secure with four nut and washer assemblies. Tighten to 4-6 N.m (35-53 lb-in).
3. Connect battery ground cable.






4. Verify air bag indicator.
