Home >> Mercury >> 1991 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Normal Scan Data Values (Includes PIDs) >> Diagnostic Reference Values

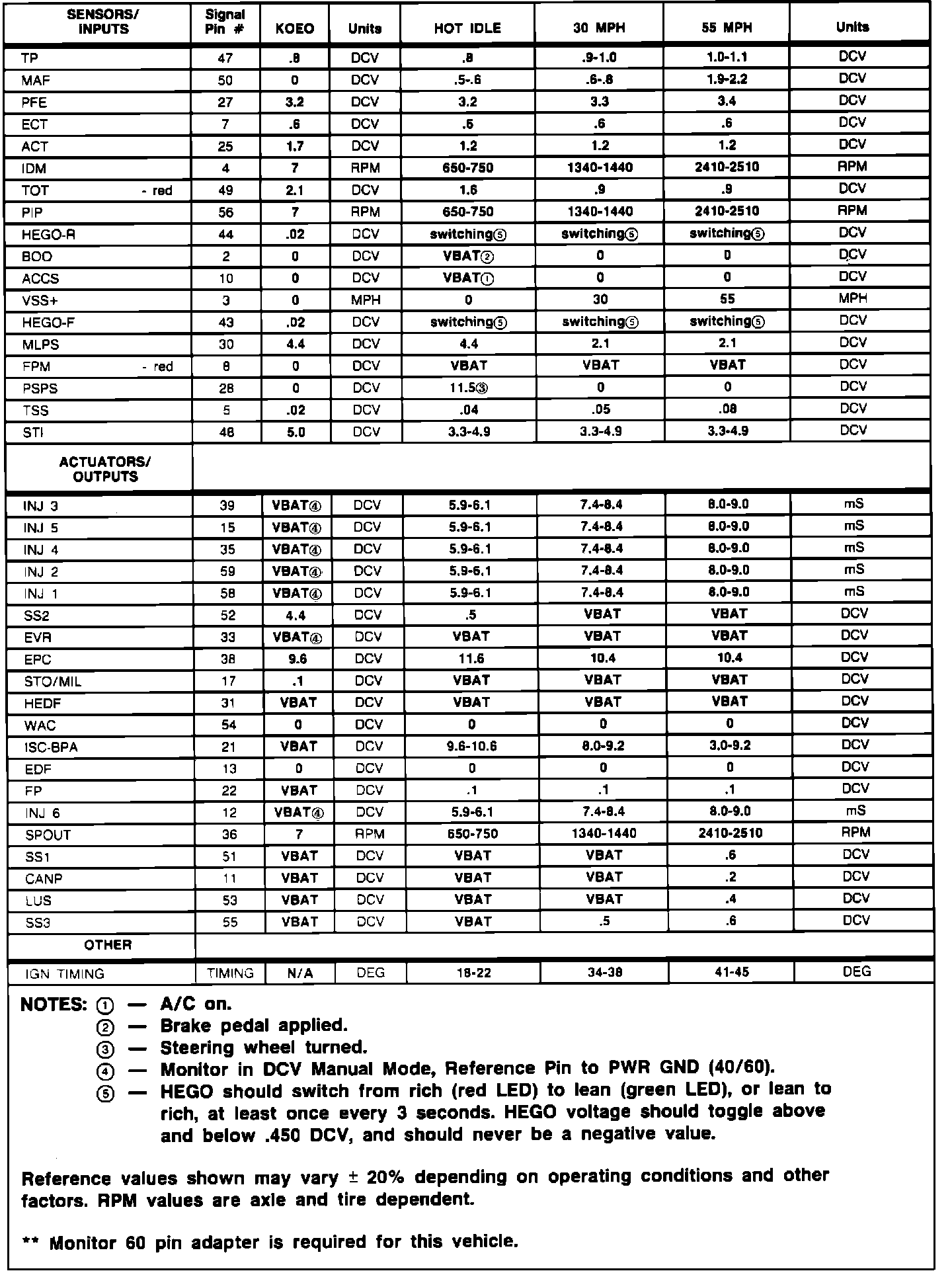

Diagnostic Reference Values

Diagnostic Reference Values:
