X - Integrated Relay Control Module
>>
X101 - Check Fuel Pump Operation
X101 - Check Fuel Pump Operation

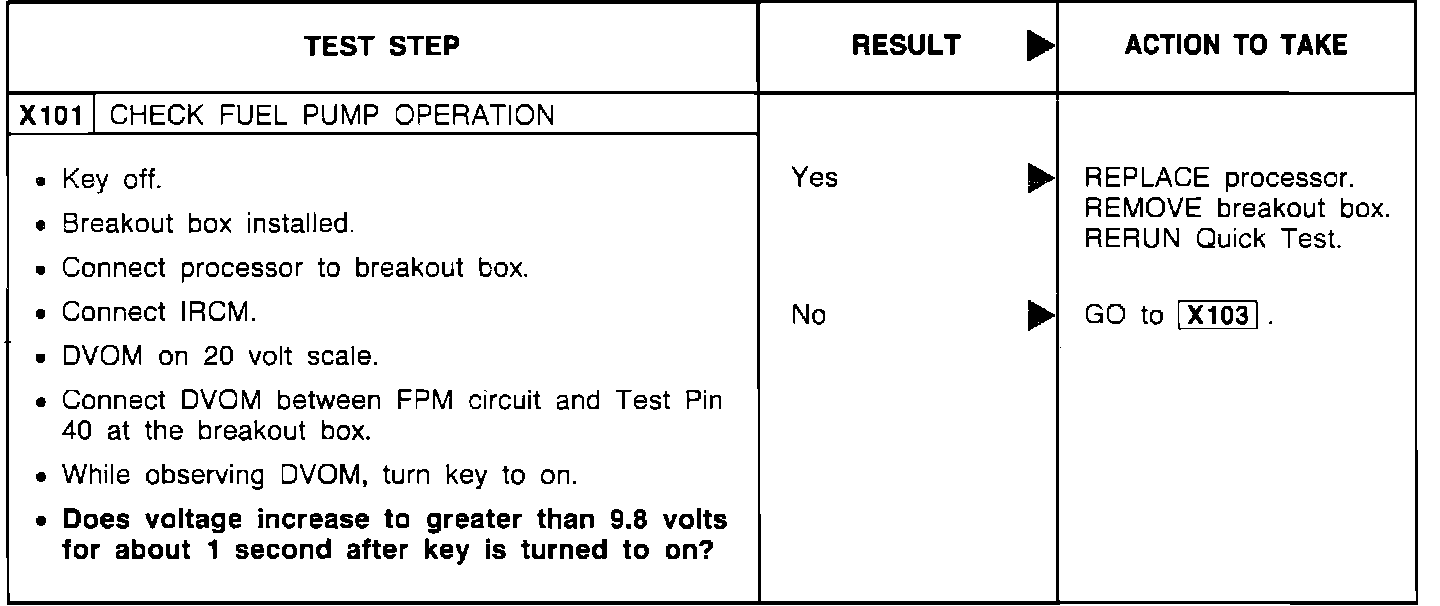

Pinpoint Test X101:
