KM - WOT A/C Cut-Off (WAC) A/C Demand
>>
KM18 - Check Resistance of WAC Relay Coil
KM18 - Check Resistance of WAC Relay Coil

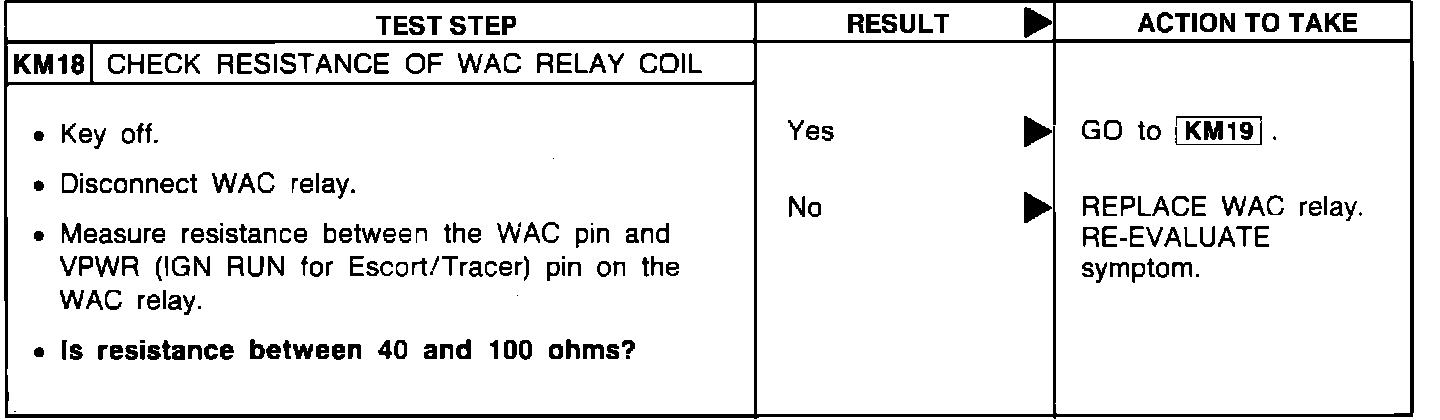

Pinpoint Test KM18:
