Home >> Mercury >> 1991 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> KE - Idle Speed Control >> KE5 - Check For Internal Short to ISC Solenoid Case

KE5 - Check For Internal Short to ISC Solenoid Case

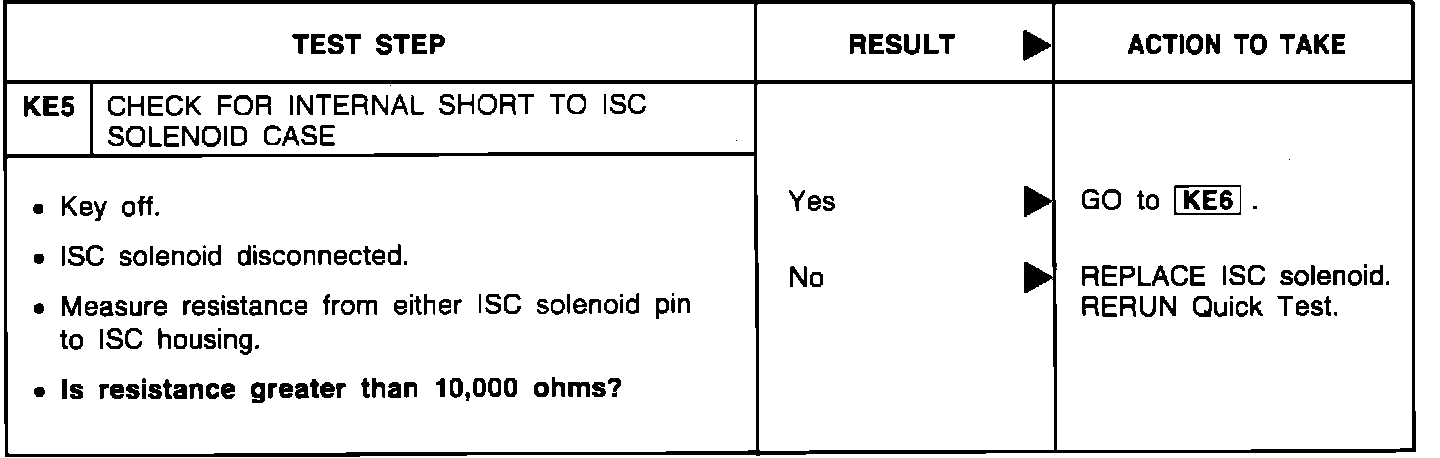

Pinpoint Test KE5:
