Home >> Mercury >> 1991 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> H - Fuel Control >> H19 - Check HEGO Sensor For Short to Ground

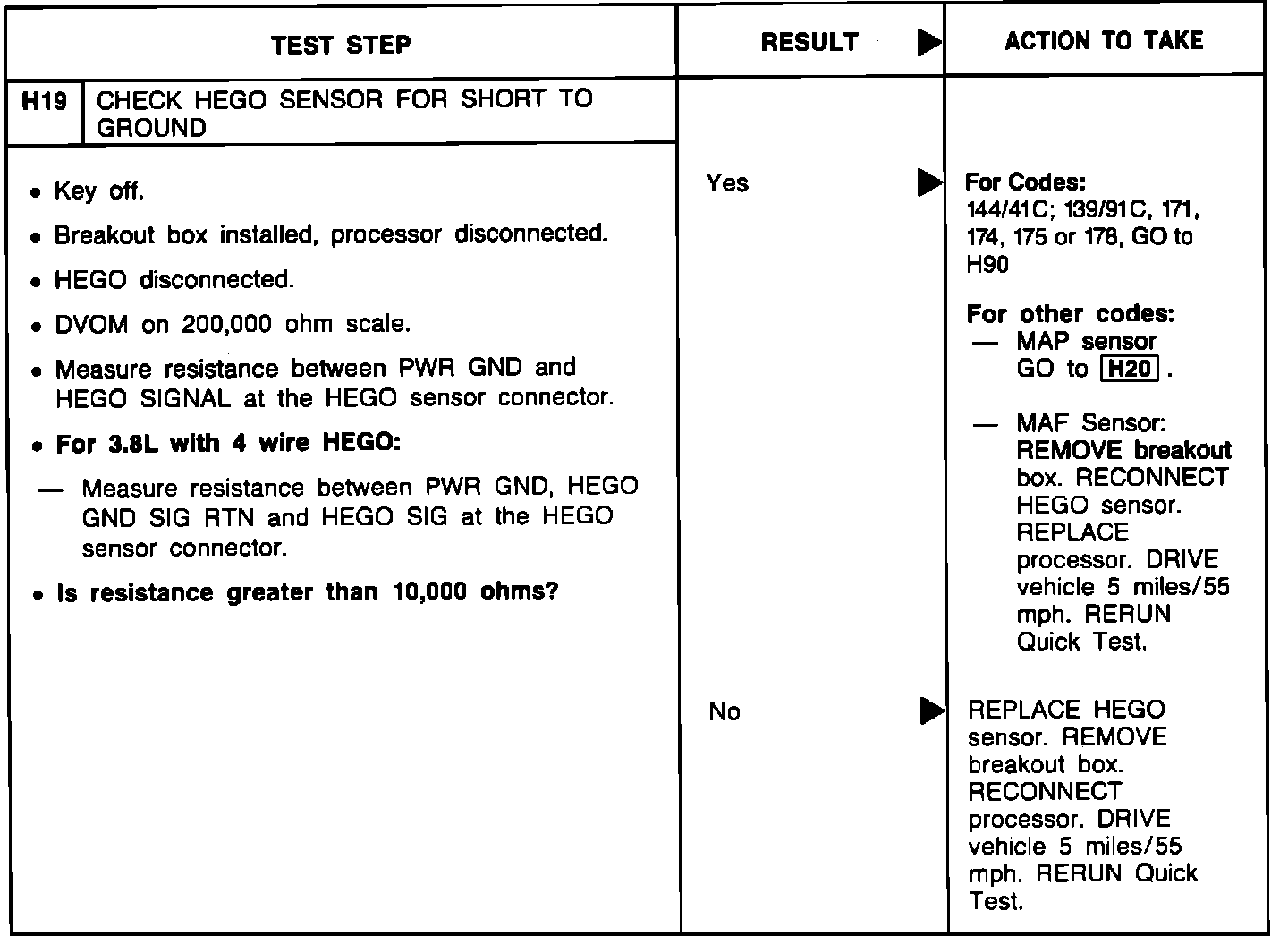

H19 - Check HEGO Sensor For Short to Ground

Pinpoint Test H19:
