Home >> Mercury >> 1991 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> FD - Brake On/Off (BOO) Switch >> FD3 - Check For BOO Circuit Cycling

FD3 - Check For BOO Circuit Cycling

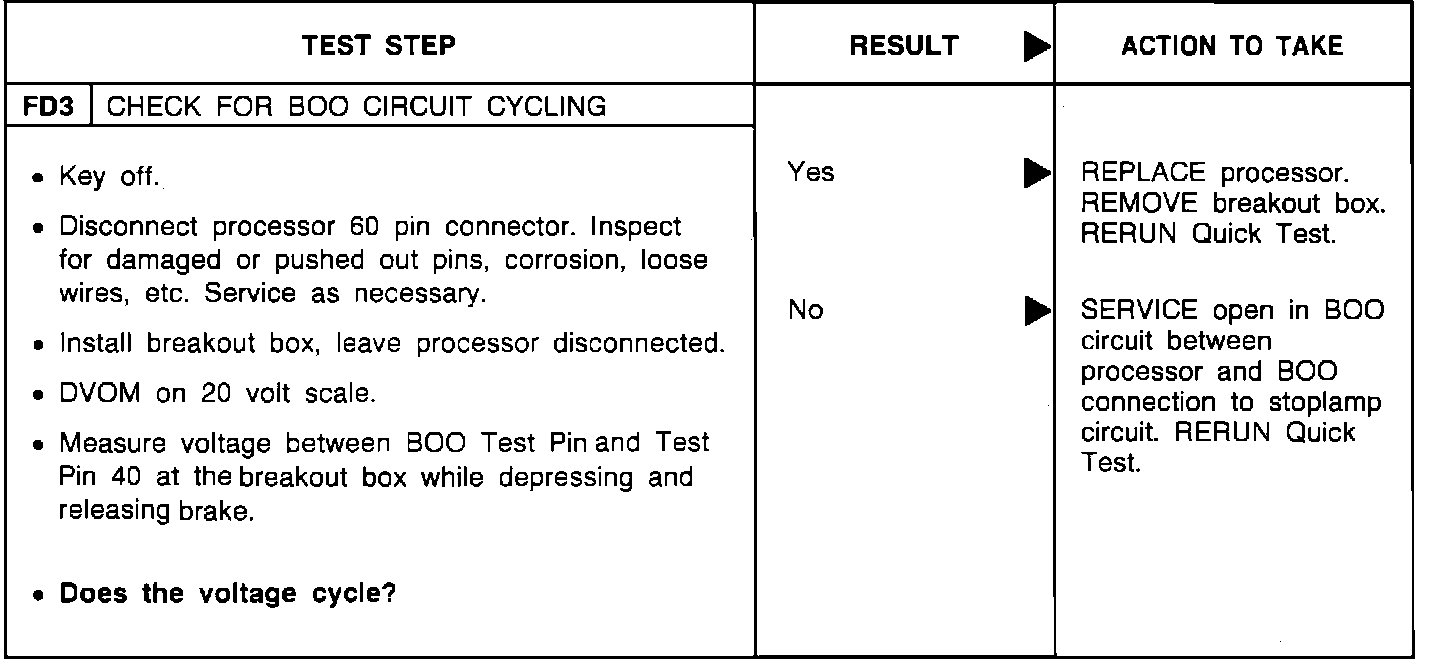

Pinpoint Test FD3:
