DN - EGR Valve Position Sensor/EGR Vacuum Regulator Solenoid
>>
DN12 - Check EVR Circuit Continuity
DN12 - Check EVR Circuit Continuity

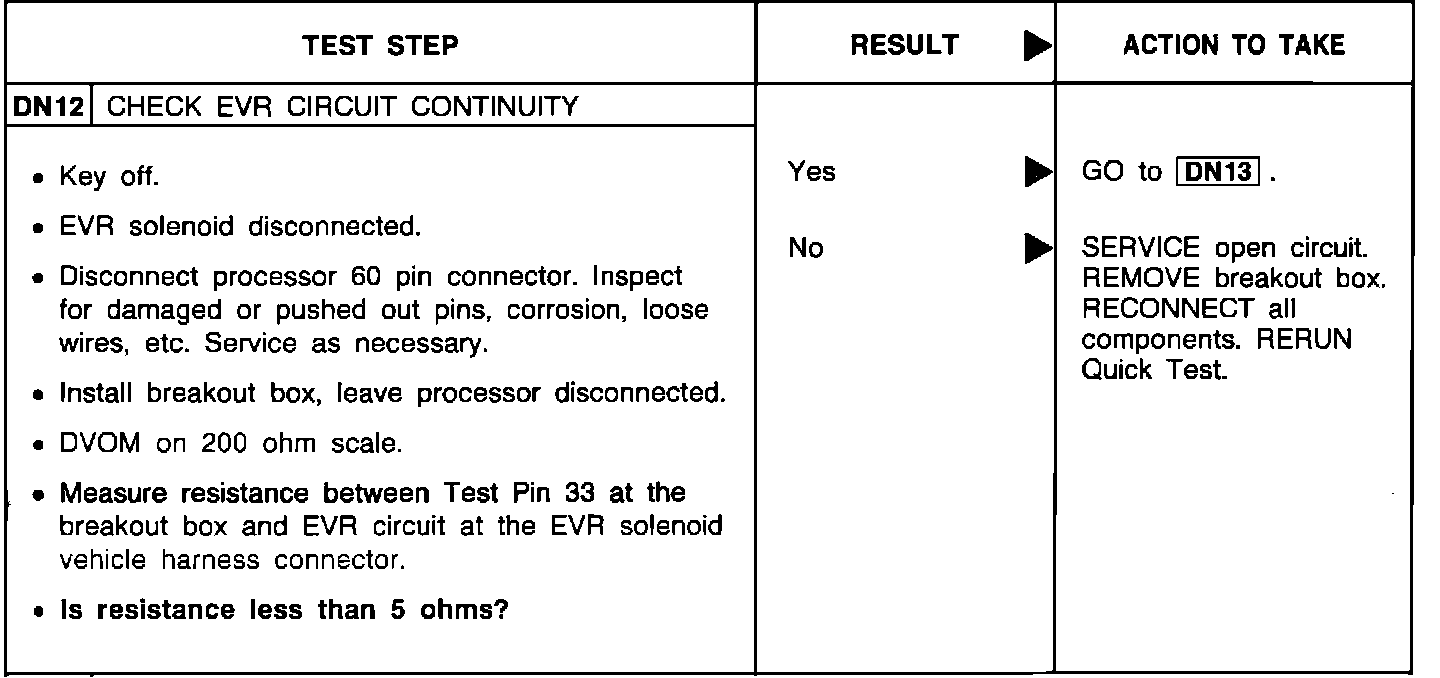

Pinpoint Test DN12:
