Home >> Mercury >> 1991 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> DL - PFE/DPFE Sensor; EVR Solenoid Testing >> DL41 - Check PFE/DPFE Harness For Shorts to Ground & Sig Rtn

DL41 - Check PFE/DPFE Harness For Shorts to Ground & Sig Rtn

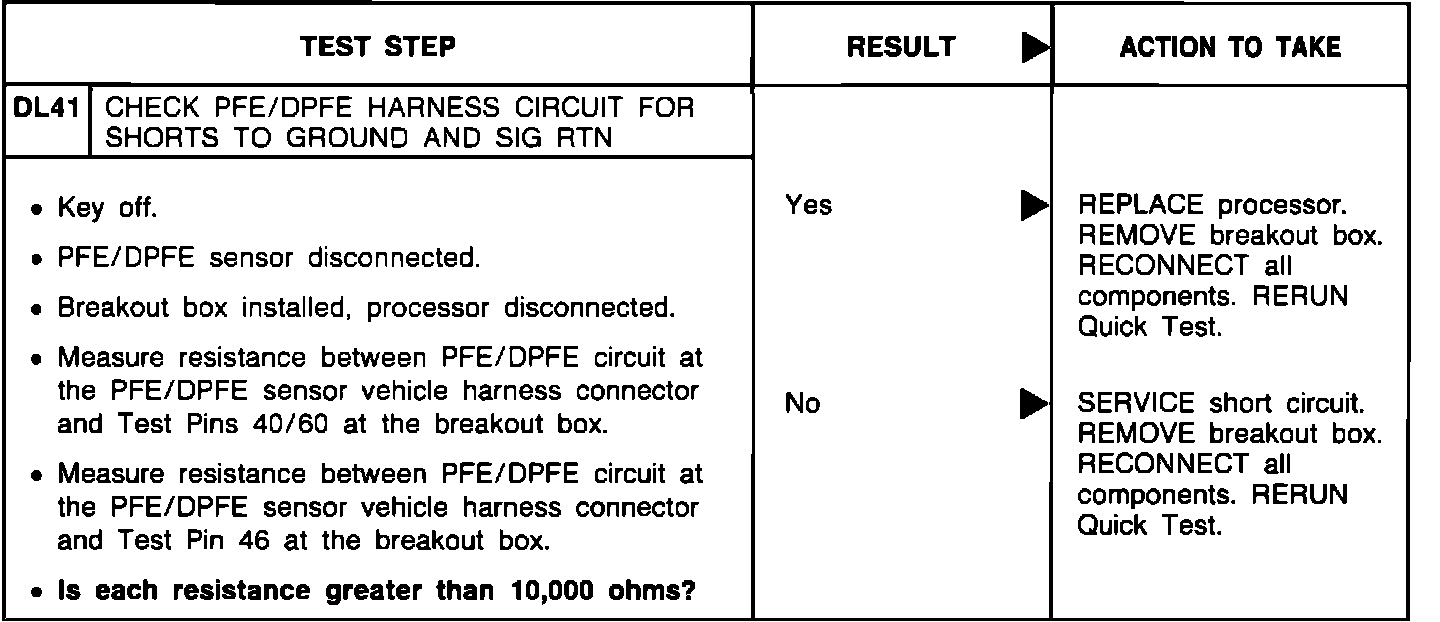

Pinpoint Test DL41:
