Connecting Rod: Service and Repair

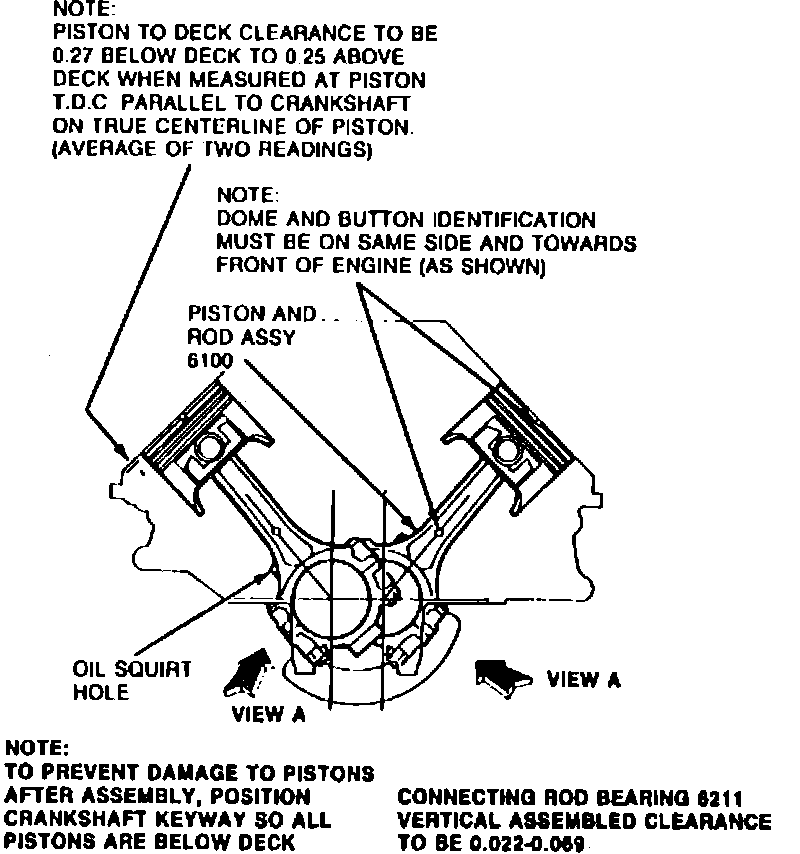

Fig. 11 Piston & Rod Assembly:

Assemble rod to piston with notch on piston dome on the same side as oil squirt hole on connecting rod. Assemble piston and rod assembly in engine with notch in dome facing front of engine, Fig. 11.
