Home >> Mercury >> 1991 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> EE Fluid Level Indicator/Pedal Travel Switch/Pressure Switch >> EE3

EE3

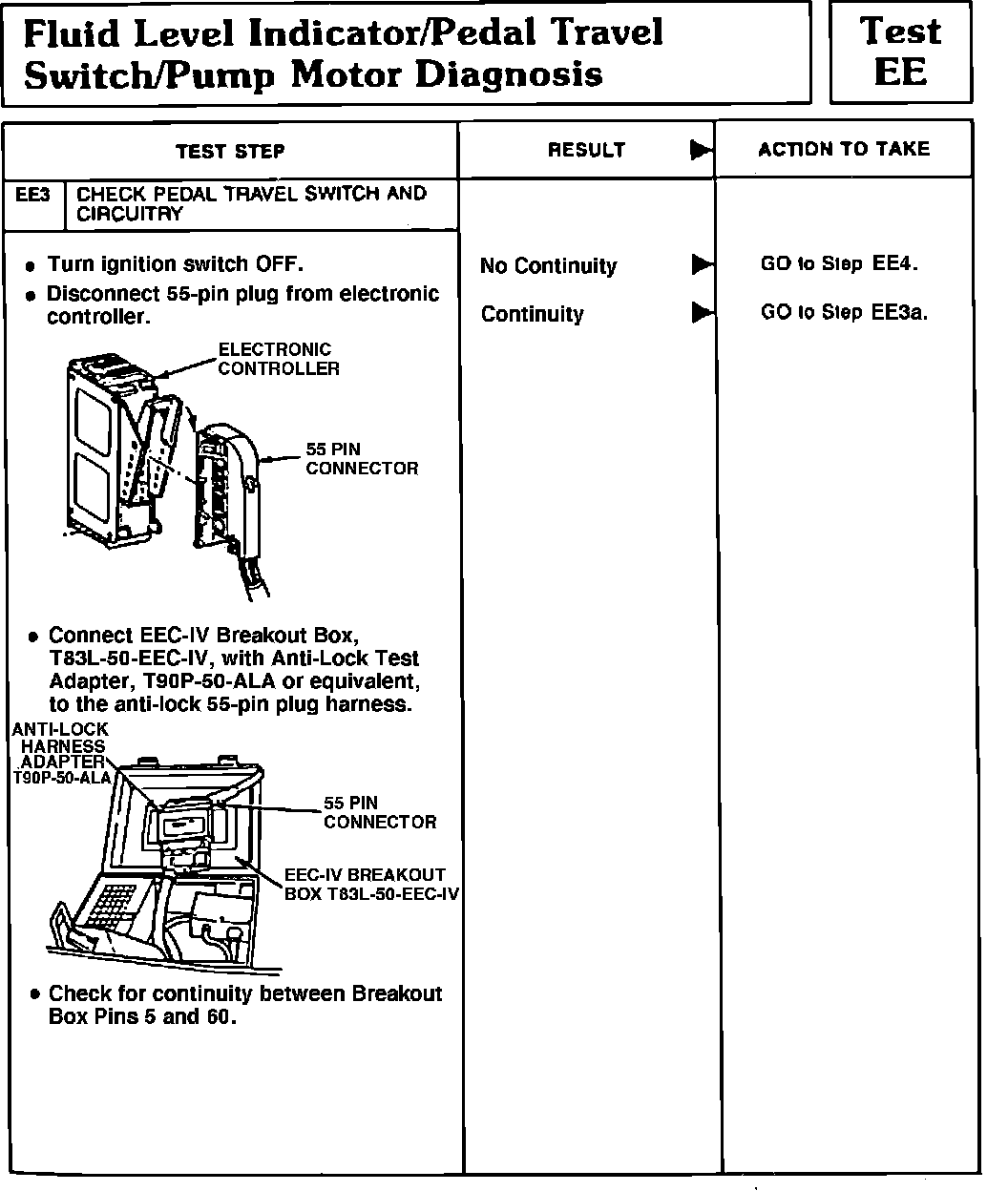

Fig. 60 Test EE3 (Fluid Level Indicator/Pedal Travel Switch/Pump Motor). 1991 Continental/Sable & Taurus:
