System Deactivation Procedures

To Deactivate System:
1. Disconnect battery ground cable and backup power supply.

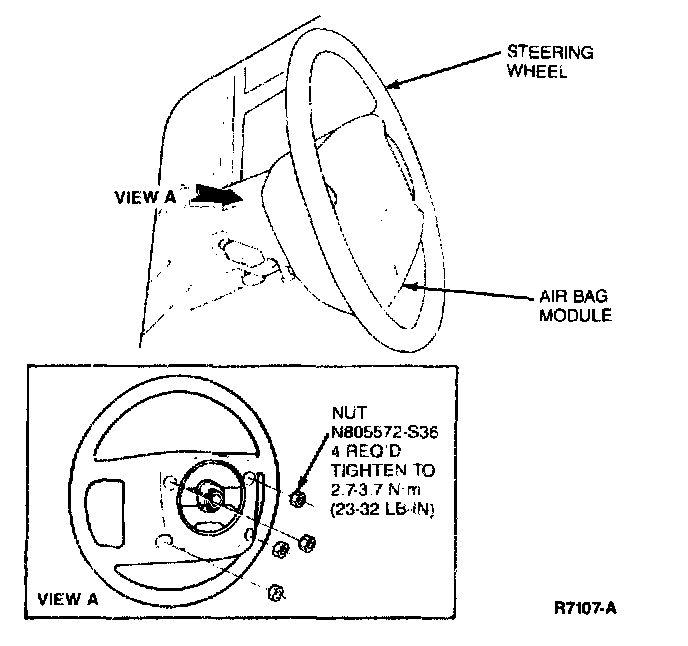

2. Remove four nut and washer assemblies retaining driver air bag to steering wheel.
3. Disconnect driver air bag connector.






4. Attach jumper wire to air bag terminals on clockspring.
5. Connect backup power supply and battery ground cable.
