Home >> Mercury >> 1991 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Fuel Filter >> Locations

Fuel Filter: Locations

In-line Fuel Filter:

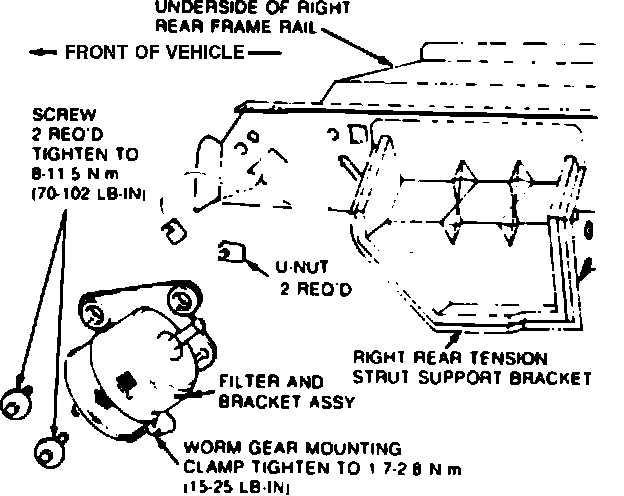

The fuel filter is located on the underside of the right rear frame rail.
