Home >> Mercury >> 1991 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Diagrams By Calibration Code >> California >> 1-10T-R00

1-10T-R00

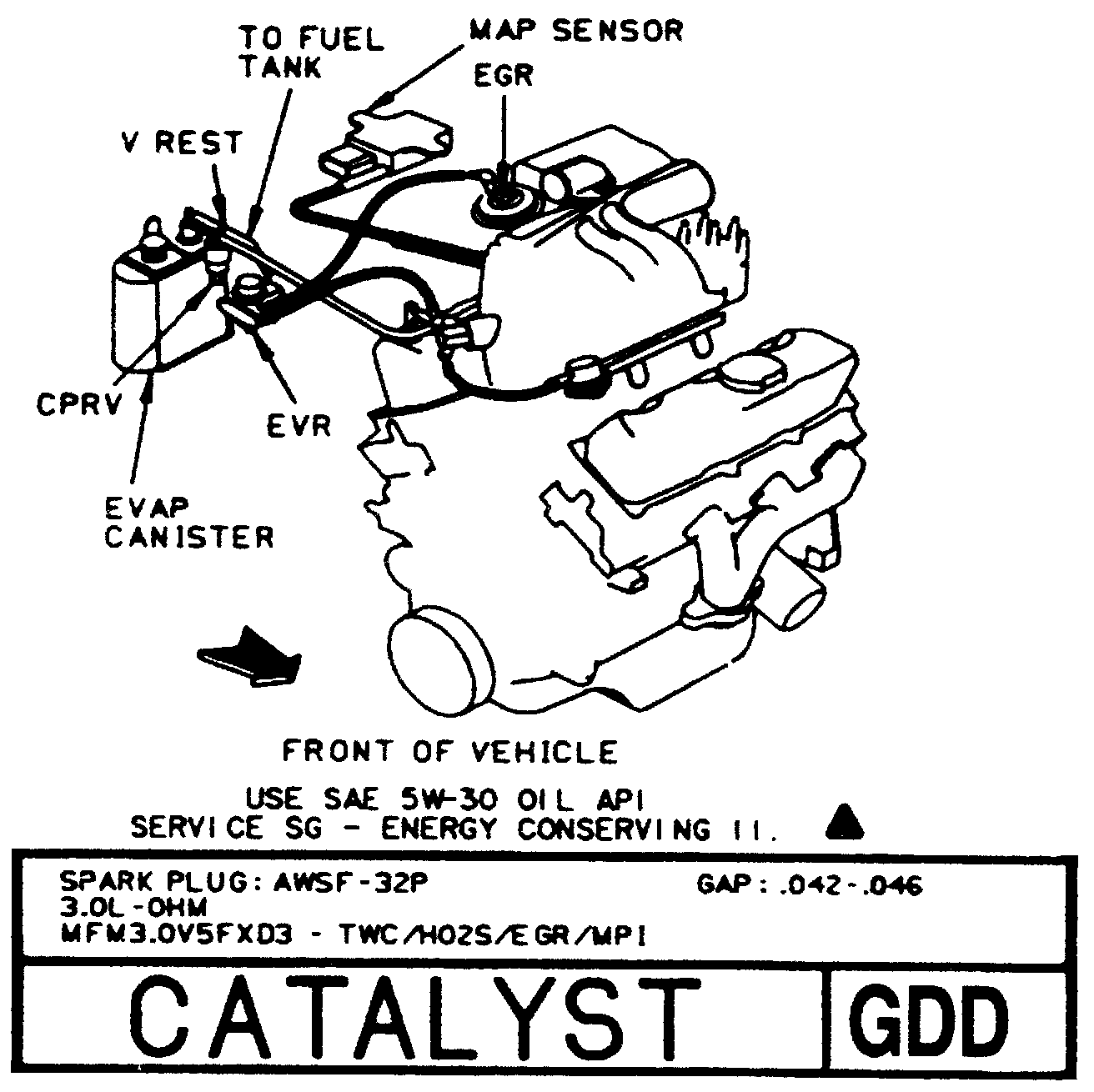

Vehicle Emission Control Information:
