Home >> Mercury >> 1991 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> X - Integrated Relay Control Module >> X82 - Fan Always On With Code 88: Check EDF Circuit Continuity

X82 - Fan Always On With Code 88: Check EDF Circuit Continuity

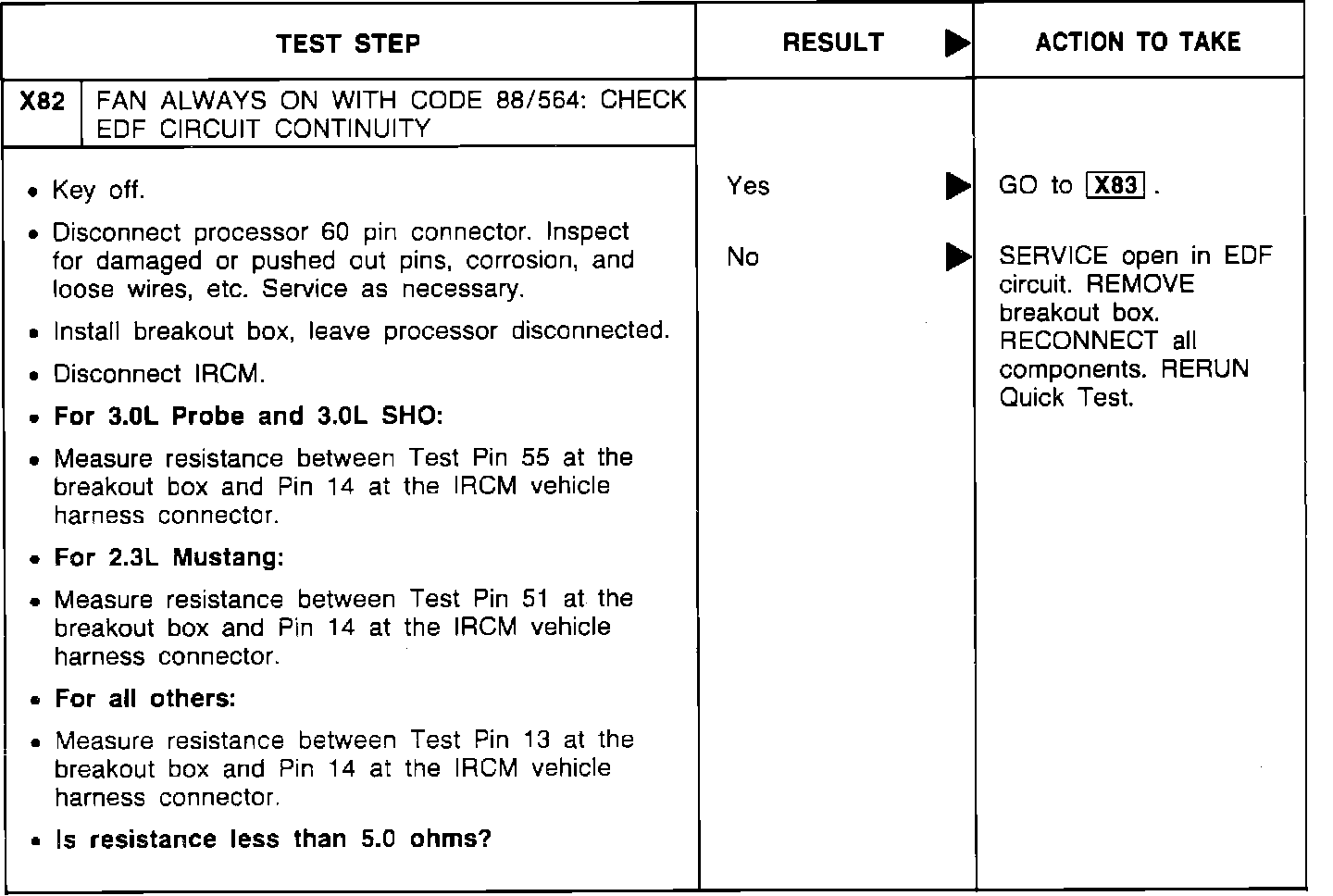

Pinpoint Test X82:
