Home >> Mercury >> 1991 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> X - Integrated Relay Control Module >> X12 - Check Power-to-Pumps Circuit Continuity

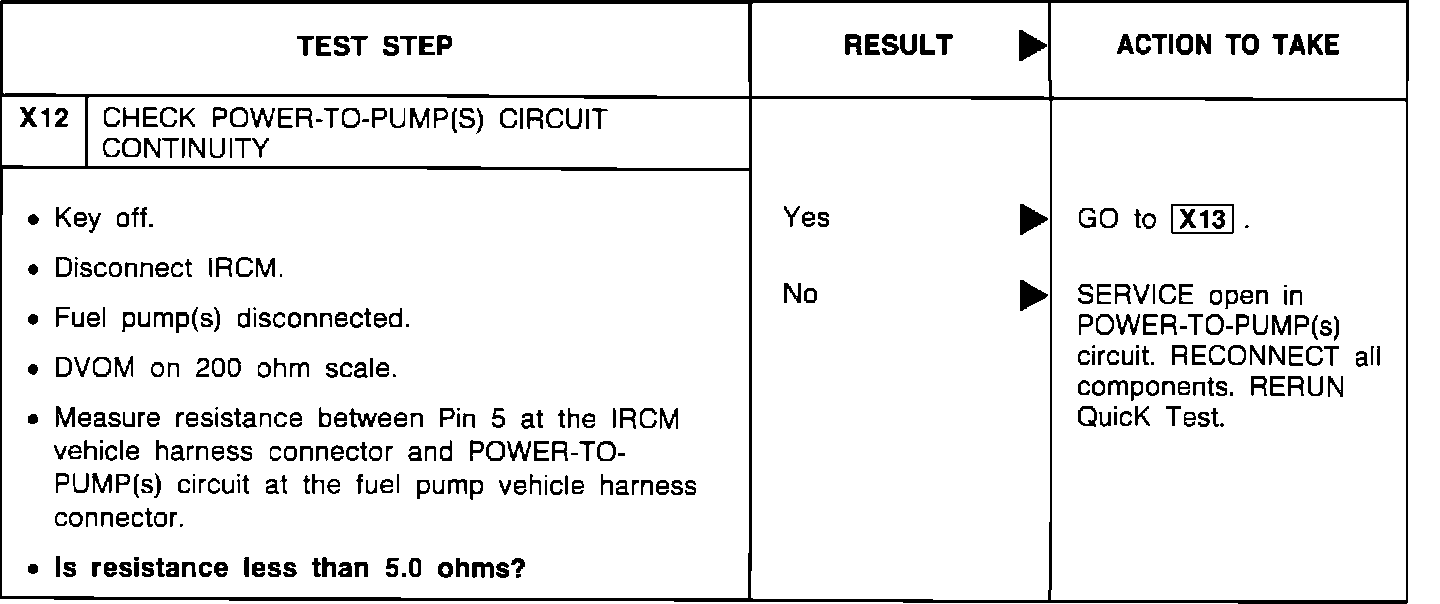

X12 - Check Power-to-Pumps Circuit Continuity

Pinpoint Test X12:
