Home >> Mercury >> 1991 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> T - Transmission - AXOD >> T80 - Check Resistance of the Manual Lever Position Sensor

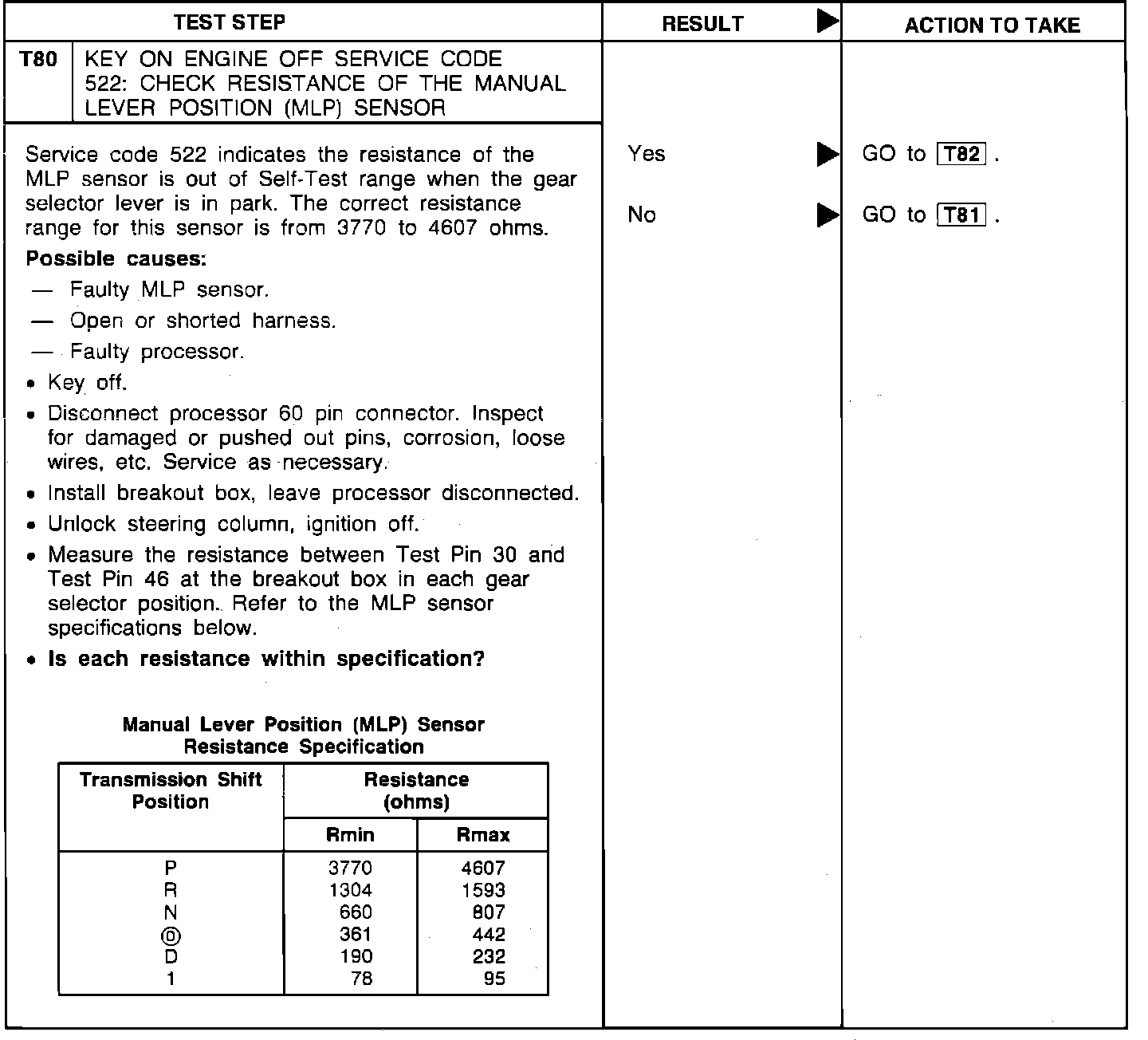

T80 - Check Resistance of the Manual Lever Position Sensor

Pinpoint Test T80:
