T31 - Check For VREF At Throttle Position Sensor

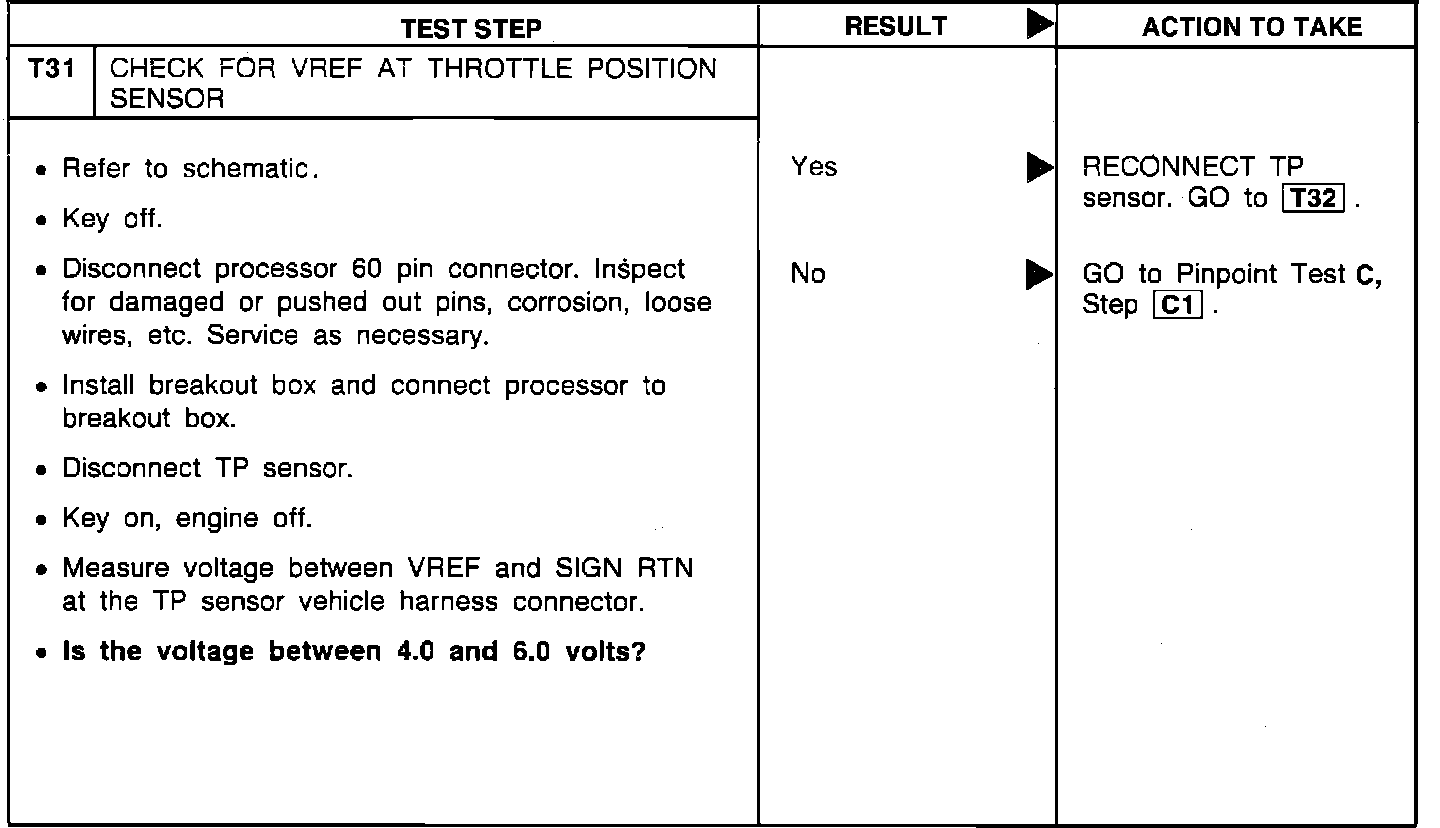

Pinpoint Test T31:



Pinpoint Test Schematic:



Pinpoint Test Schematic Wire Colors:
