T23 - Check VPWR of the EPC Solenoid Supplied By the Processor
T23 - Check VPWR of the EPC Solenoid Supplied By the Processor

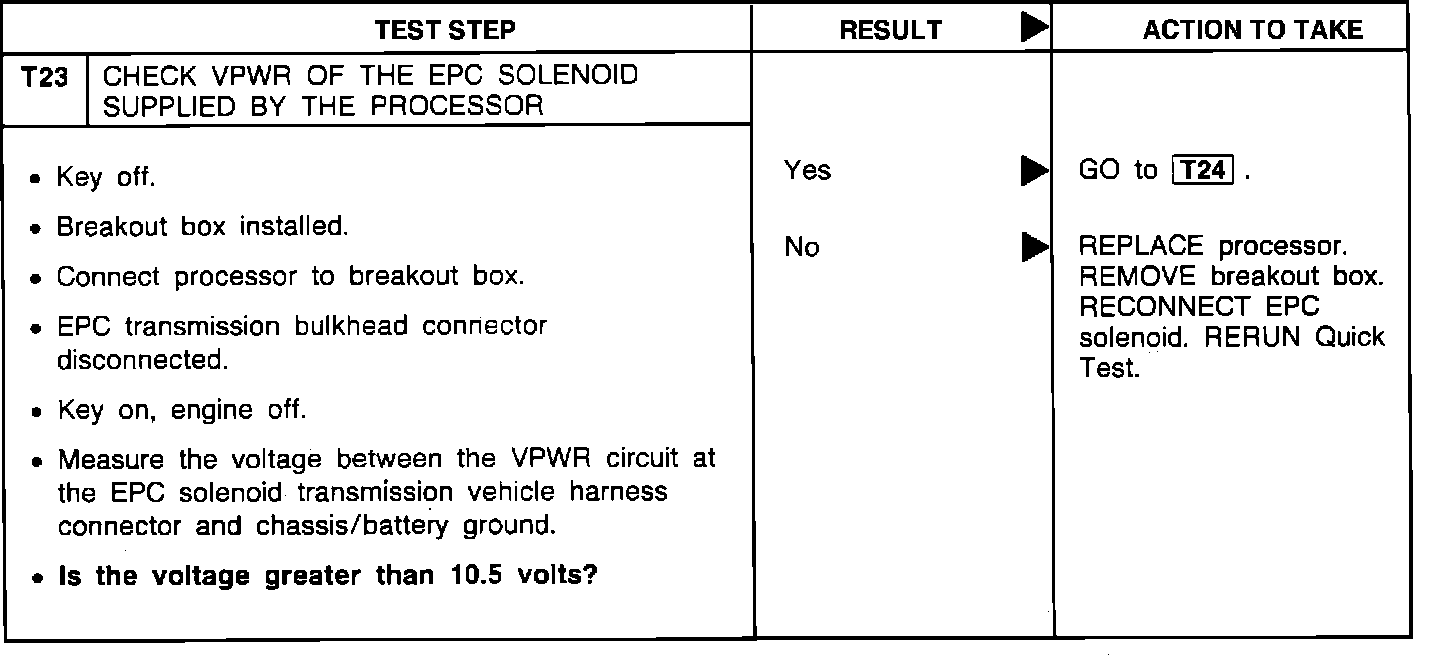

Pinpoint Test T23:
