KP - Testing Notes and Schematic

*** Updated by TSB #9111B6 June 14, 1991

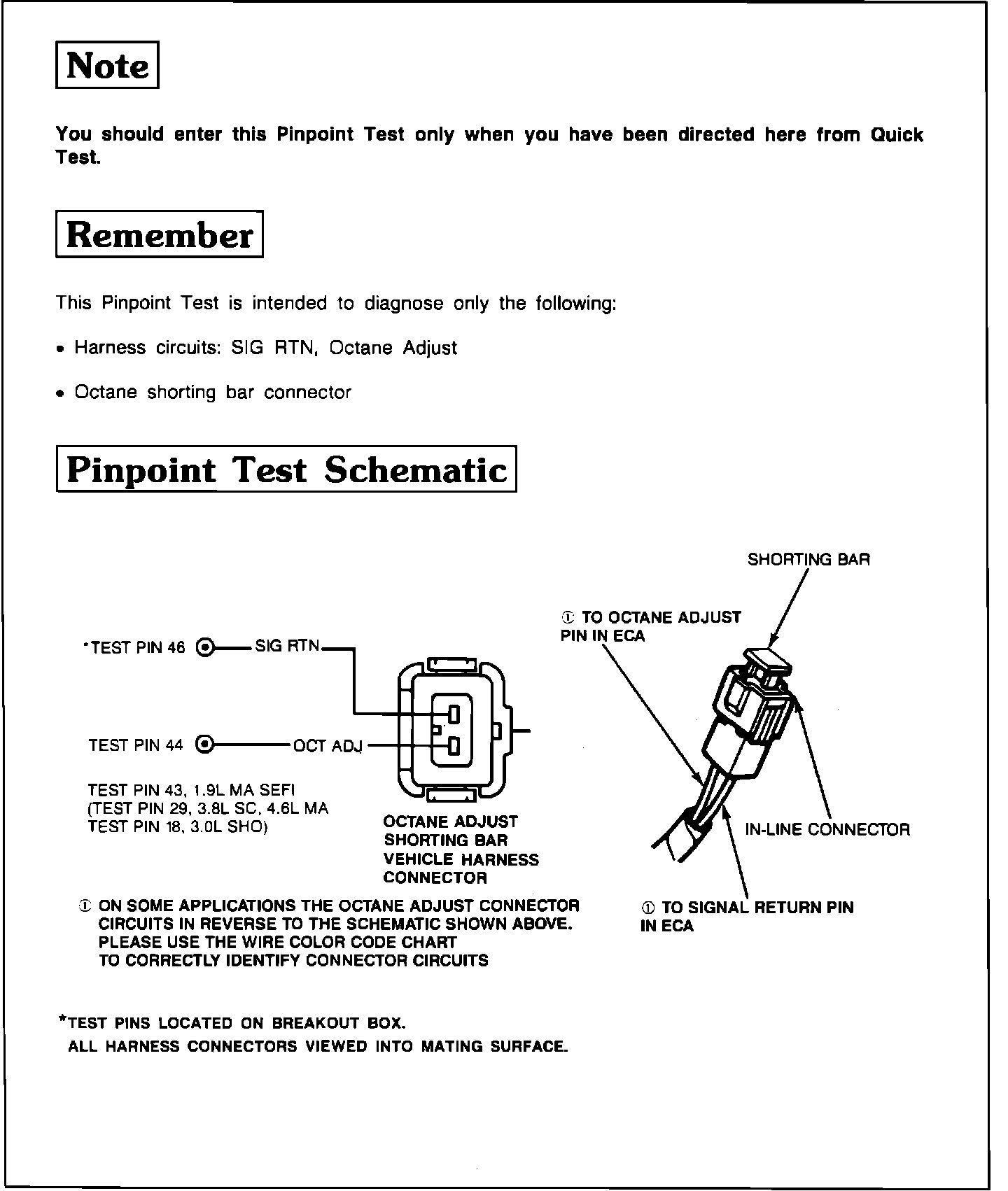

Pinpoint Test KP, Testing Notes And Schematic:

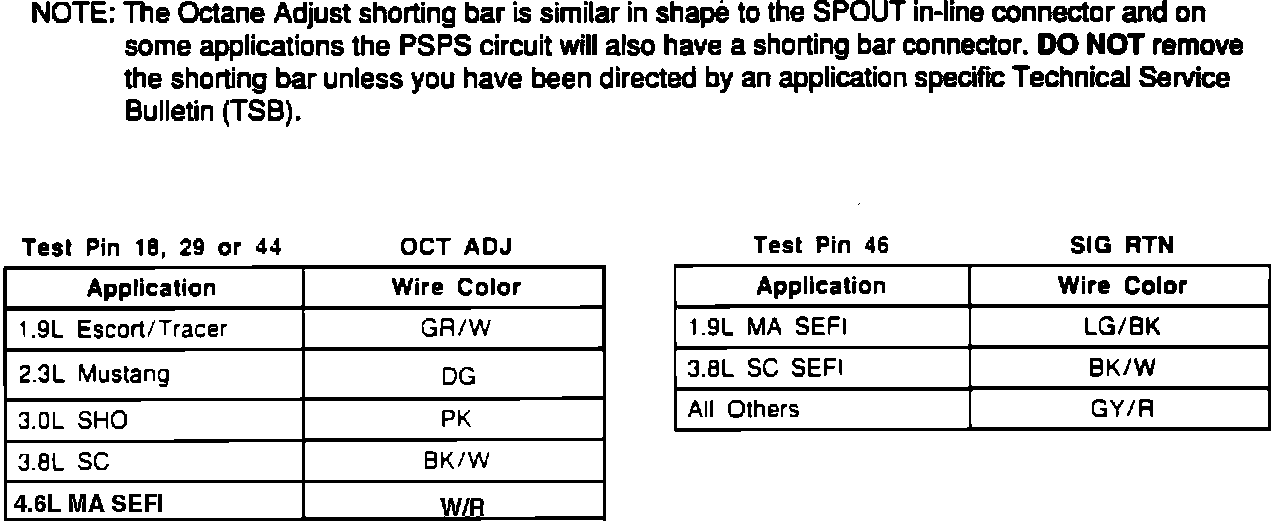

Pinpoint Test KP, Test Schematic Wire Colors:
