KM - WOT A/C Cut-Off (WAC) A/C Demand
>>
KM9 - Check WAC Relay, A/C Fan Controller
KM9 - Check WAC Relay, A/C Fan Controller

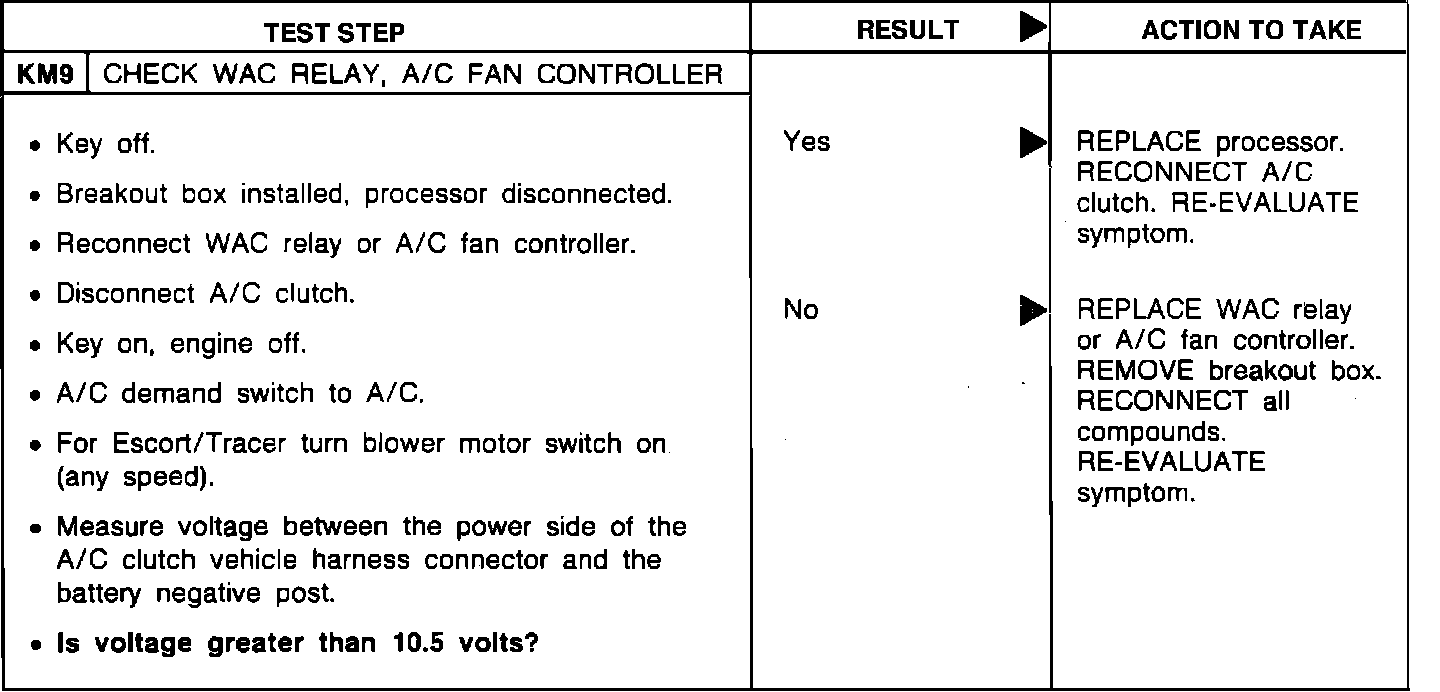

Pinpoint Test KM9:
