KF - Electro Drive Fan (EDF)/High Electro Drive Fan (HEDF)
>>
KF26 - Check For EDF Relay Always Closed

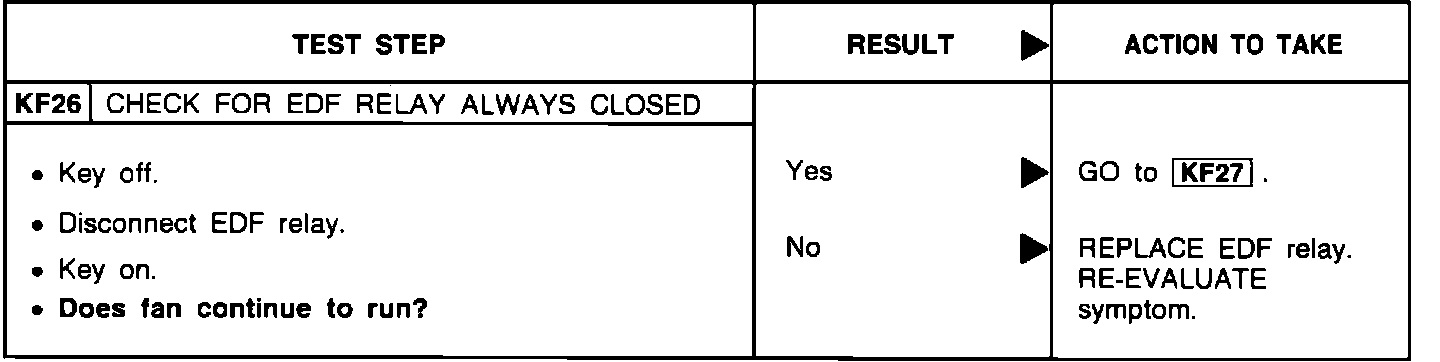

KF26 - Check For EDF Relay Always Closed
Pinpoint Test KF26:
