Home >> Mercury >> 1991 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> KD - Canister Purge (CANP) Solenoid >> KD1 - Enter Output State Diagnostic Test Mode

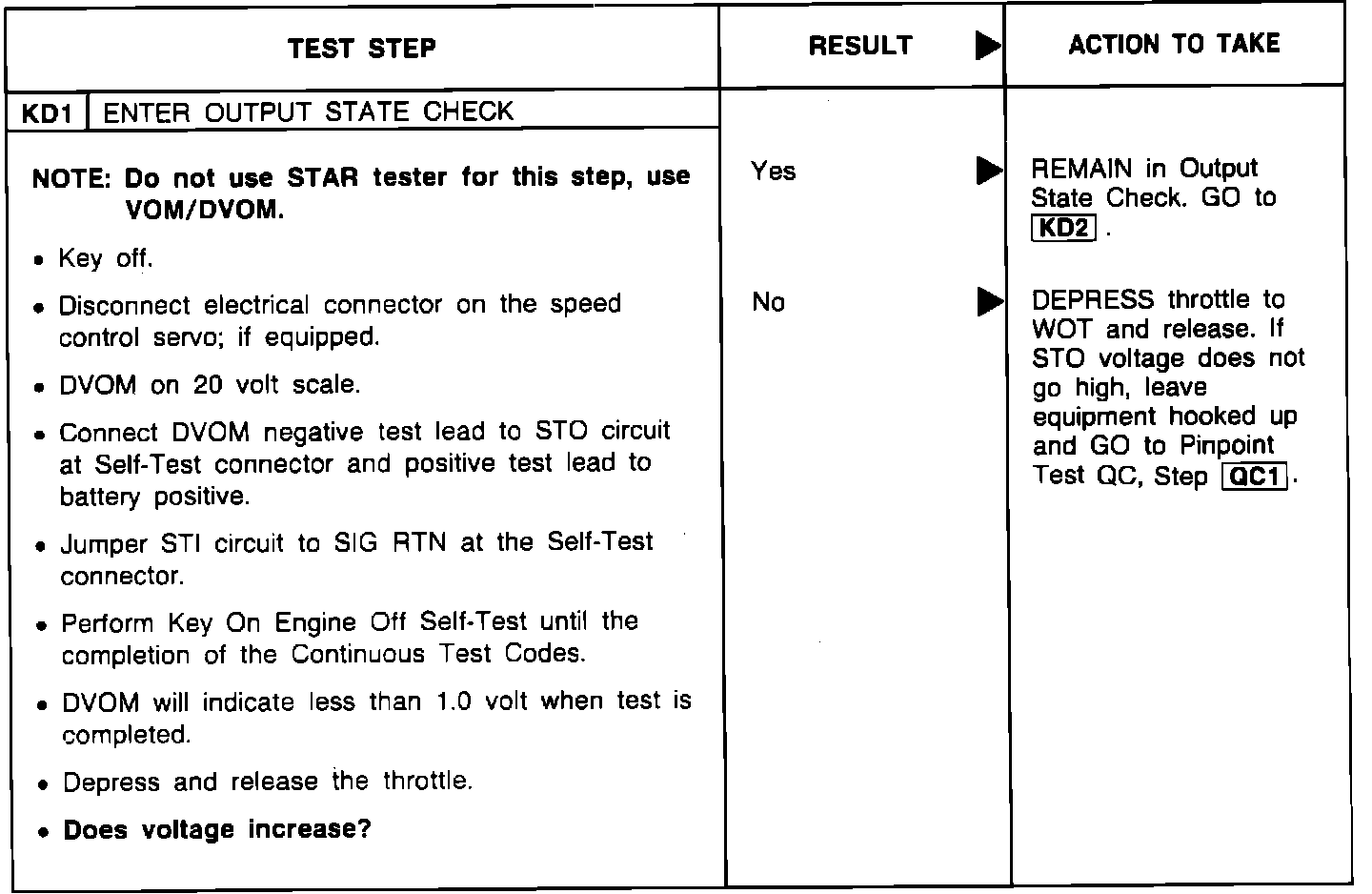

KD1 - Enter Output State Diagnostic Test Mode

Pinpoint Test KD1:
