Home >> Mercury >> 1991 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> FF - Power Steering Pressure (PSP) Switch >> FF4 - Check PSPS Circuits For Shorts

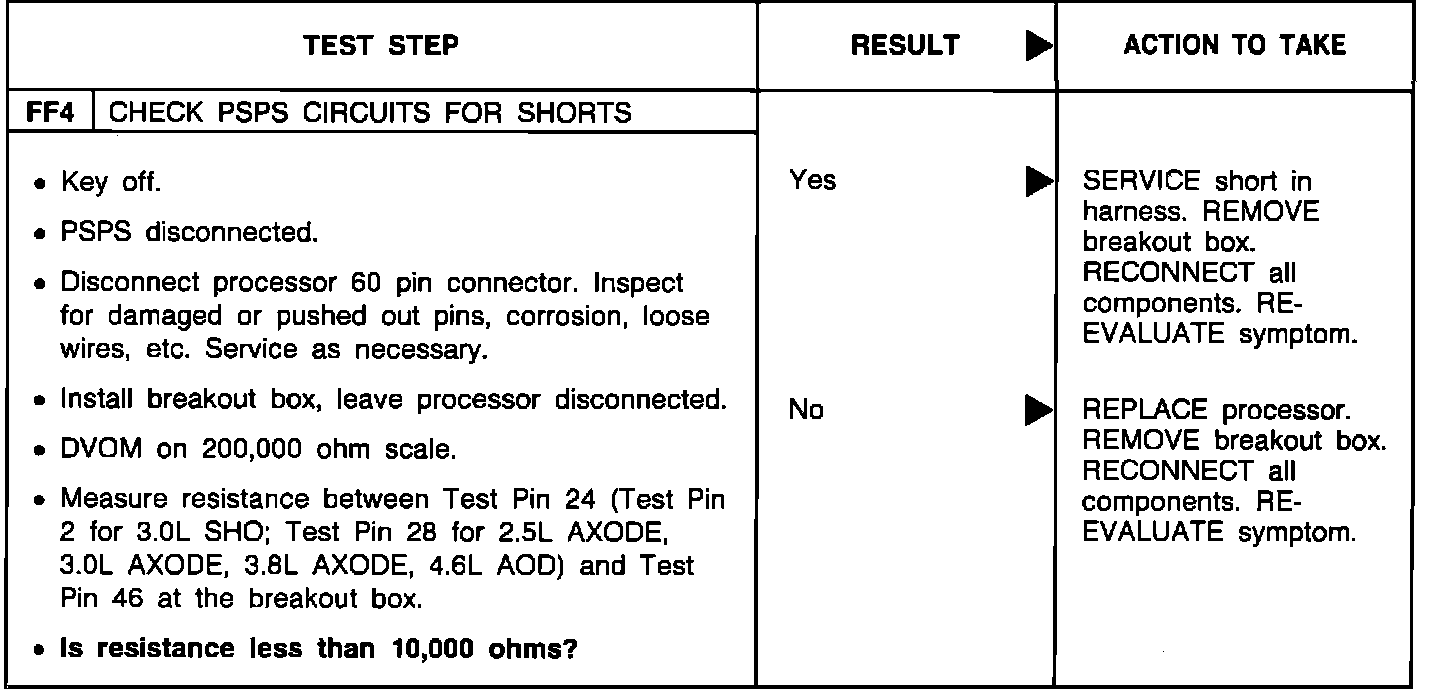

FF4 - Check PSPS Circuits For Shorts

Pinpoint Test FF4:
