Home >> Mercury >> 1991 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> FD - Brake On/Off (BOO) Switch >> FD99 - Road Test

FD99 - Road Test

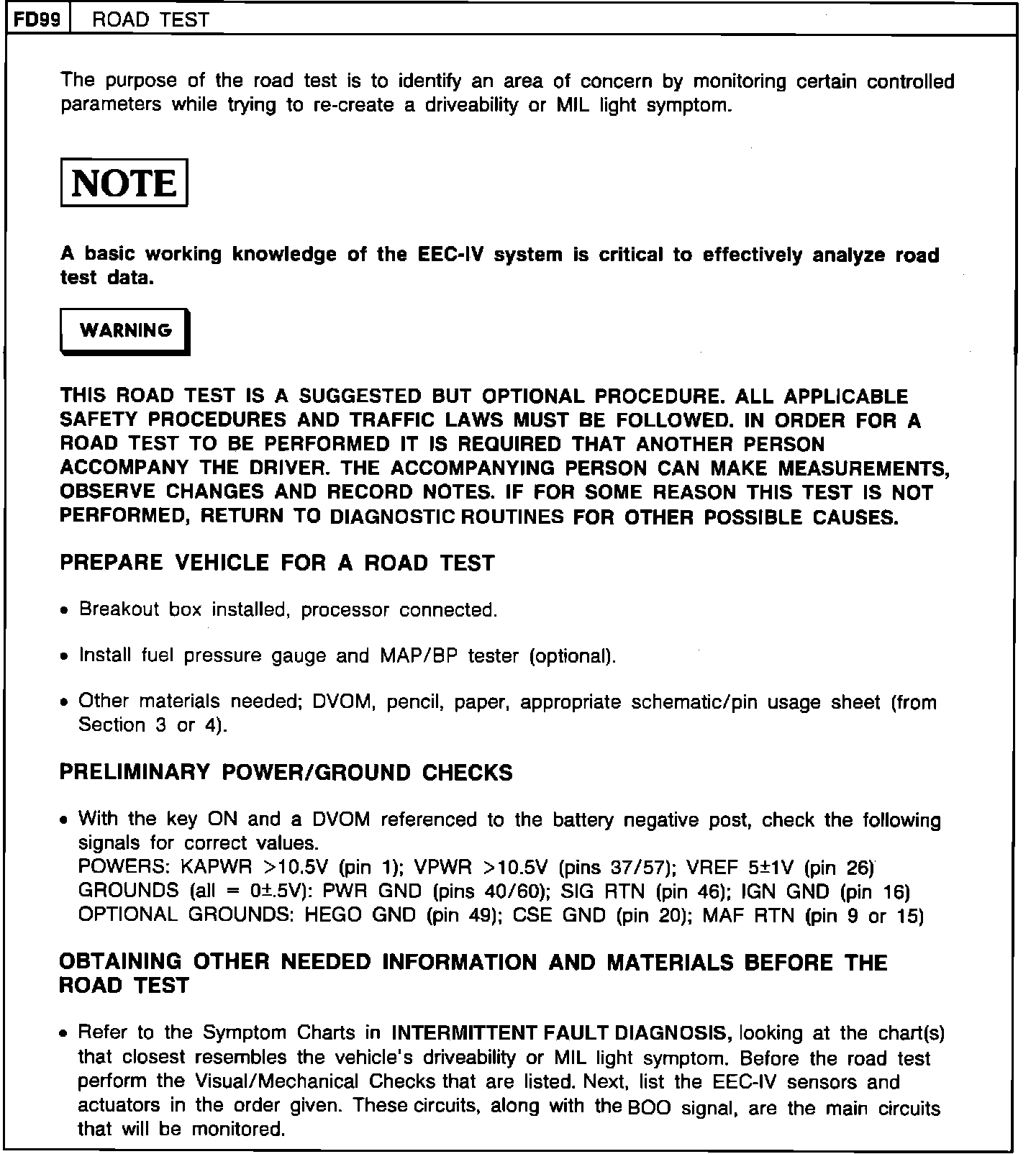

Pinpoint Test FD99:

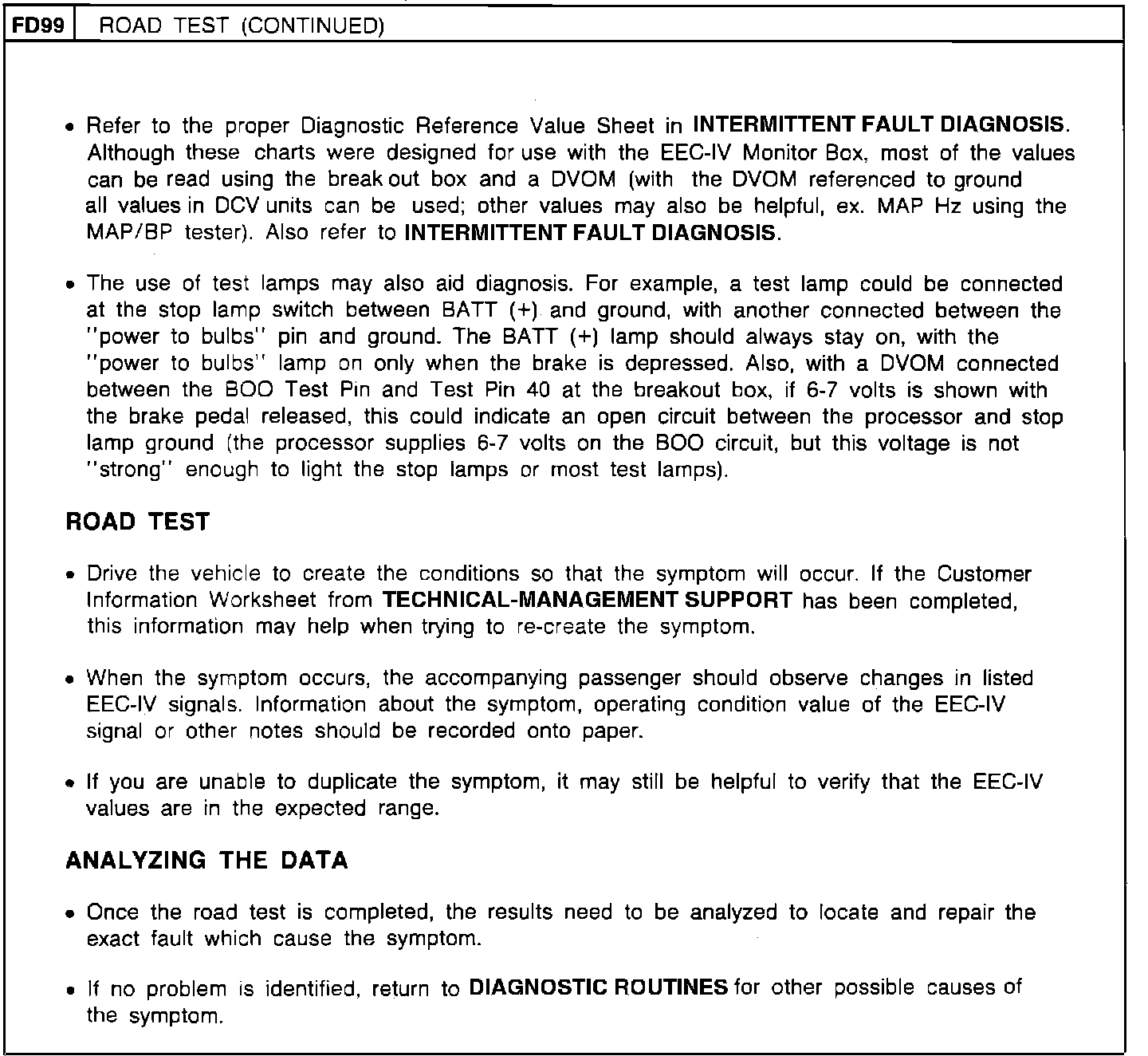

Pinpoint Test FD99, Continued:
