Home >> Mercury >> 1991 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> FD - Brake On/Off (BOO) Switch >> FD10 - Check Operation of Brake Lamps

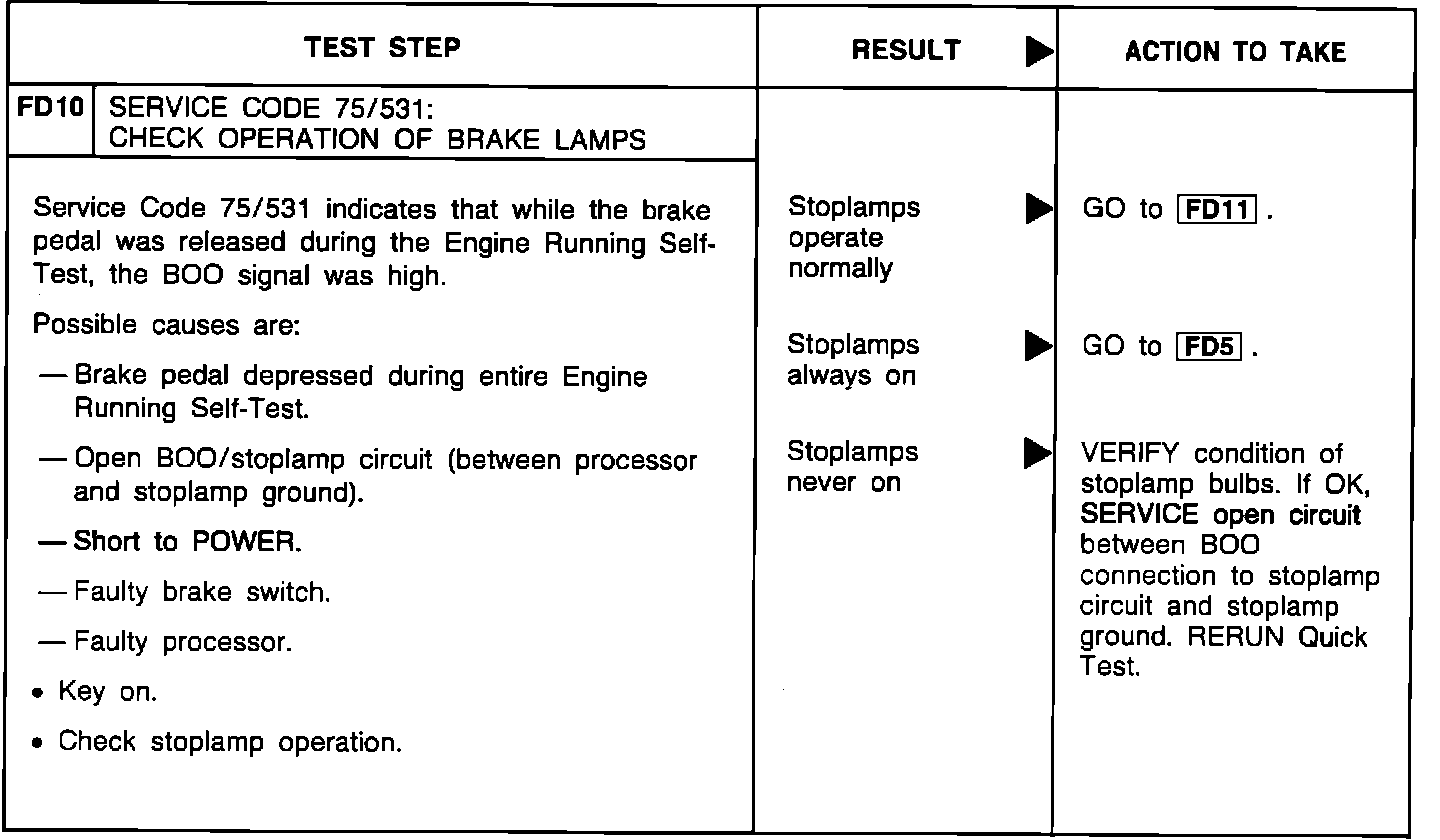

FD10 - Check Operation of Brake Lamps

Pinpoint Test FD10:
