Home >> Mercury >> 1991 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> DN - EGR Valve Position Sensor/EGR Vacuum Regulator Solenoid >> DN44 - Verify EGR Valve Vacuum Control

DN44 - Verify EGR Valve Vacuum Control

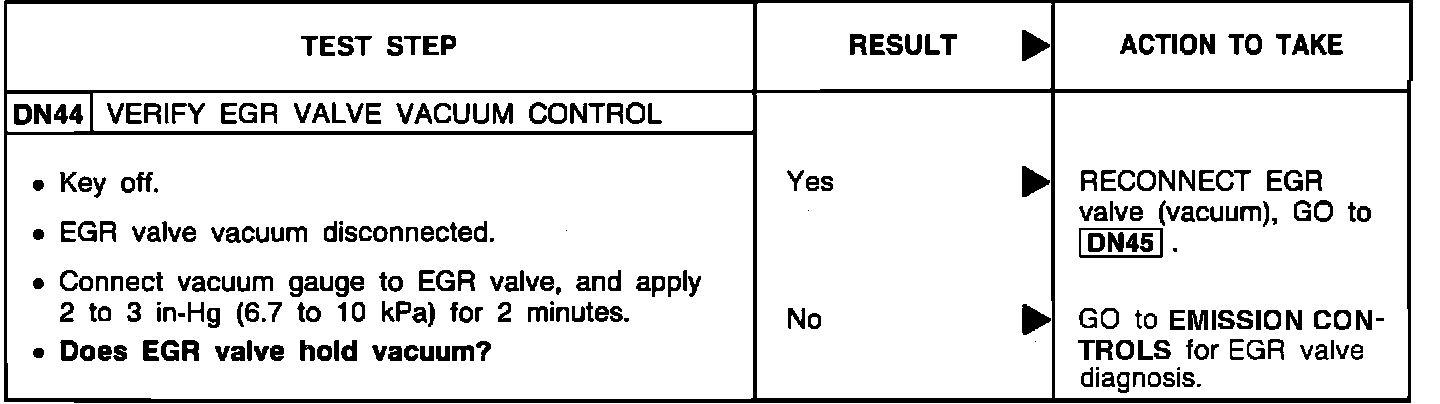

Pinpoint Test DN44:
