Home >> Mercury >> 1991 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> A - No Start Test >> A8 - Check Spout & PIP For Shorts

A8 - Check Spout & PIP For Shorts

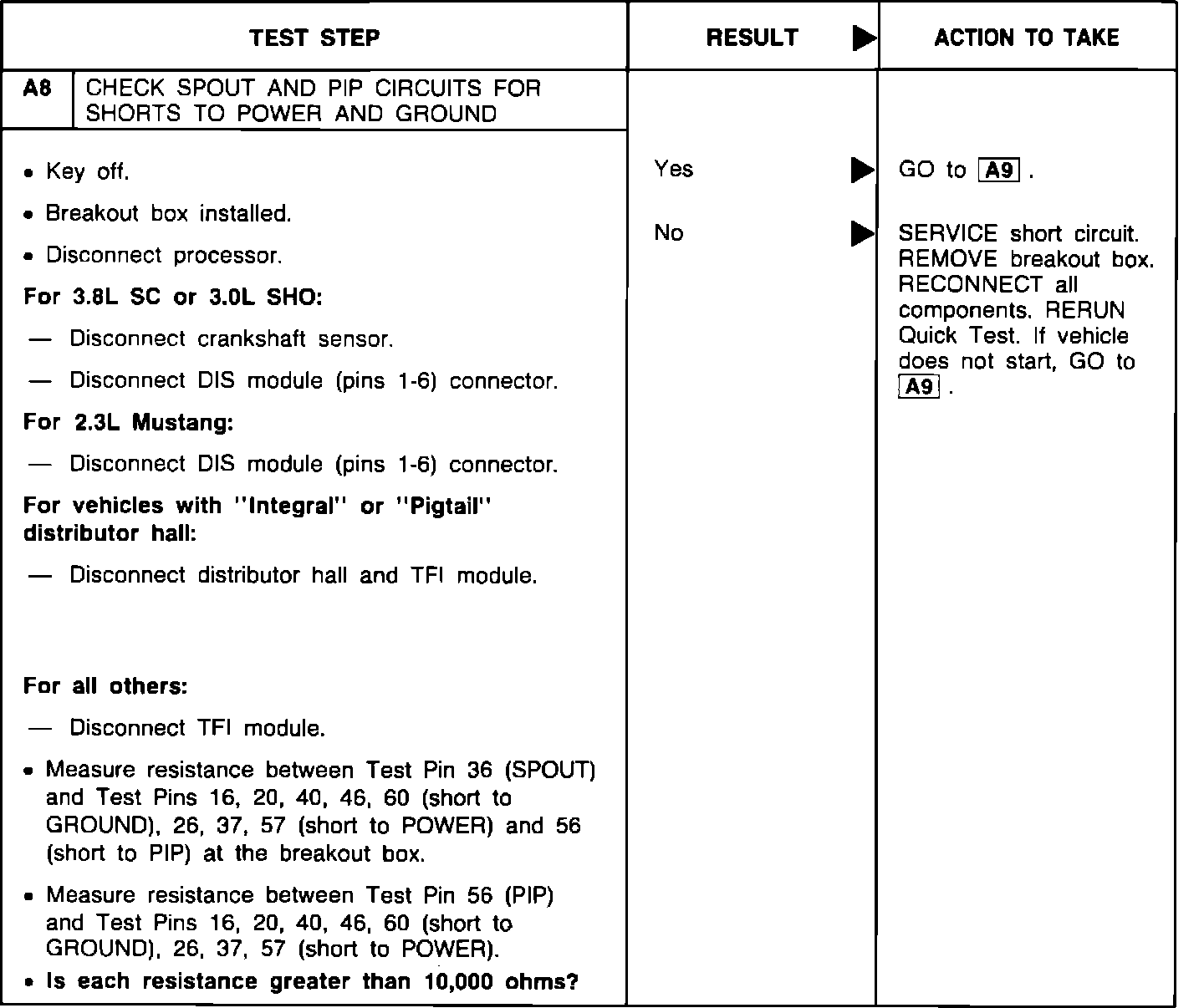

Pinpoint Test A8:
