Home >> Mercury >> 1991 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Locations >> Component Locations >> Full Body Views >> Sedan

Sedan

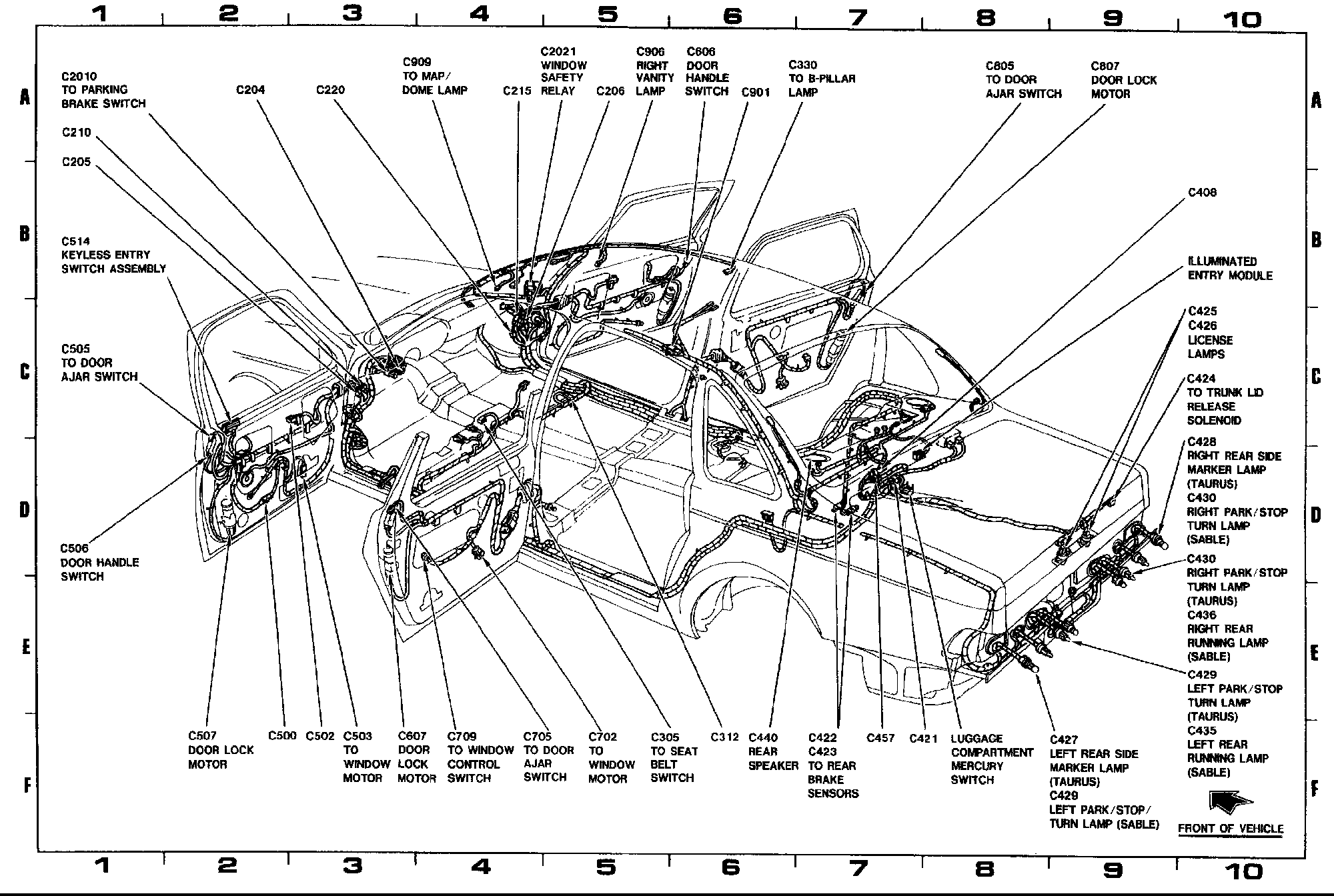

View 151-13 (Full Body View):

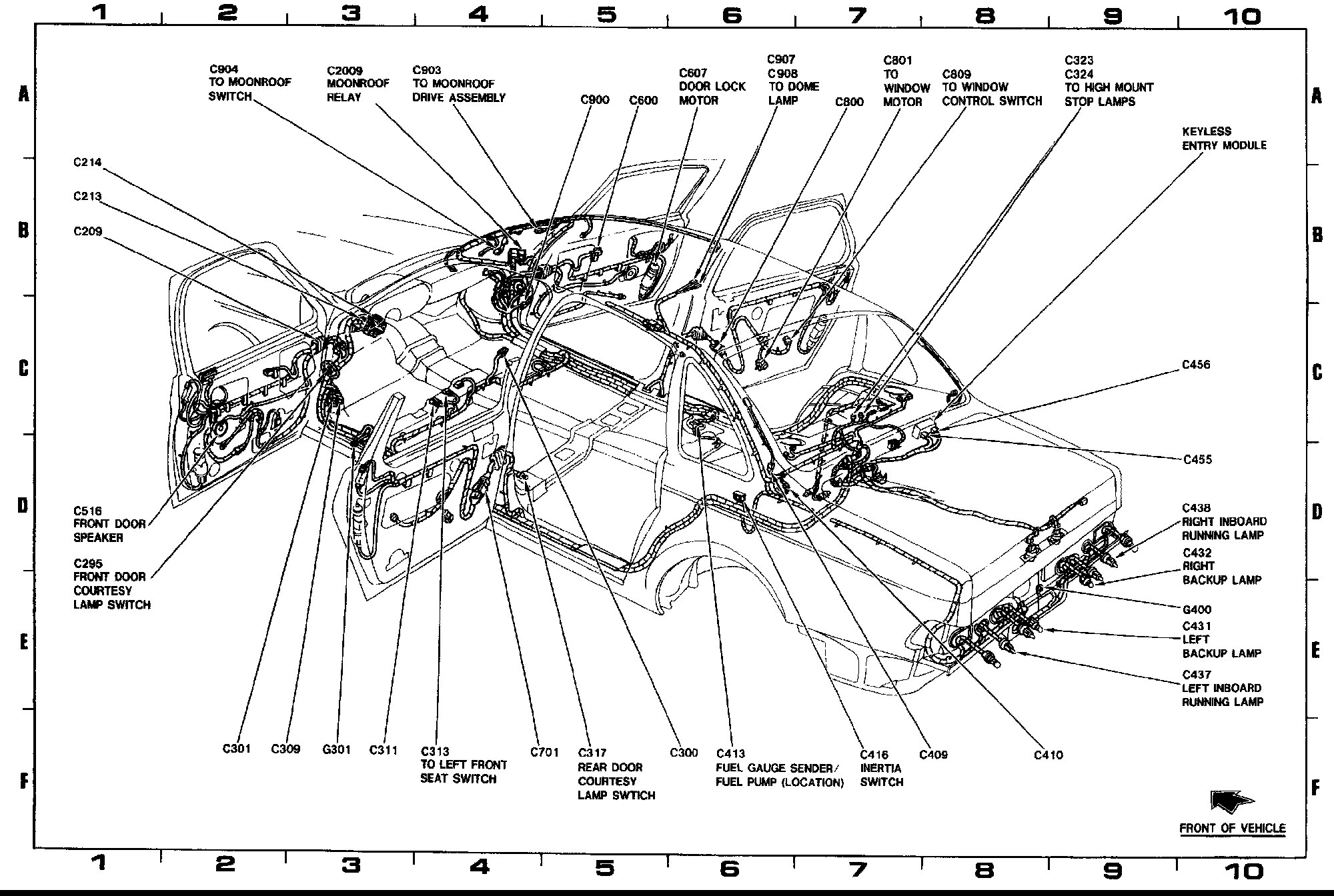

View 151-14 (Full Body View):
