Home >> Mercury >> 1991 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Engine Lubrication >> Oil Level Warning Indicator >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

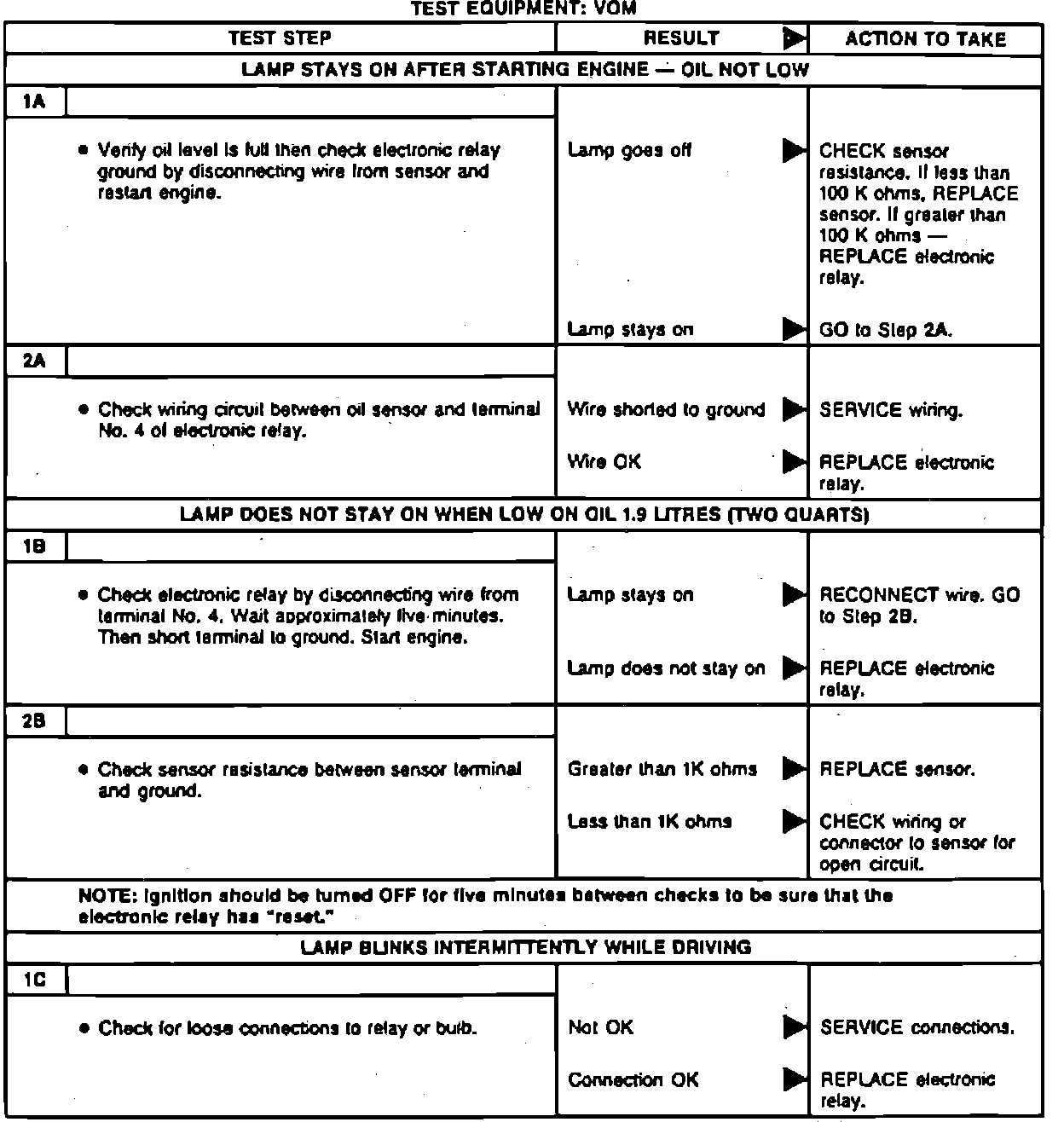

Fig. 12 Low Oil Level Indicator Diagnosis:
