Home >> Mercury >> 1991 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Instrument Cluster >> Electronic

Electronic

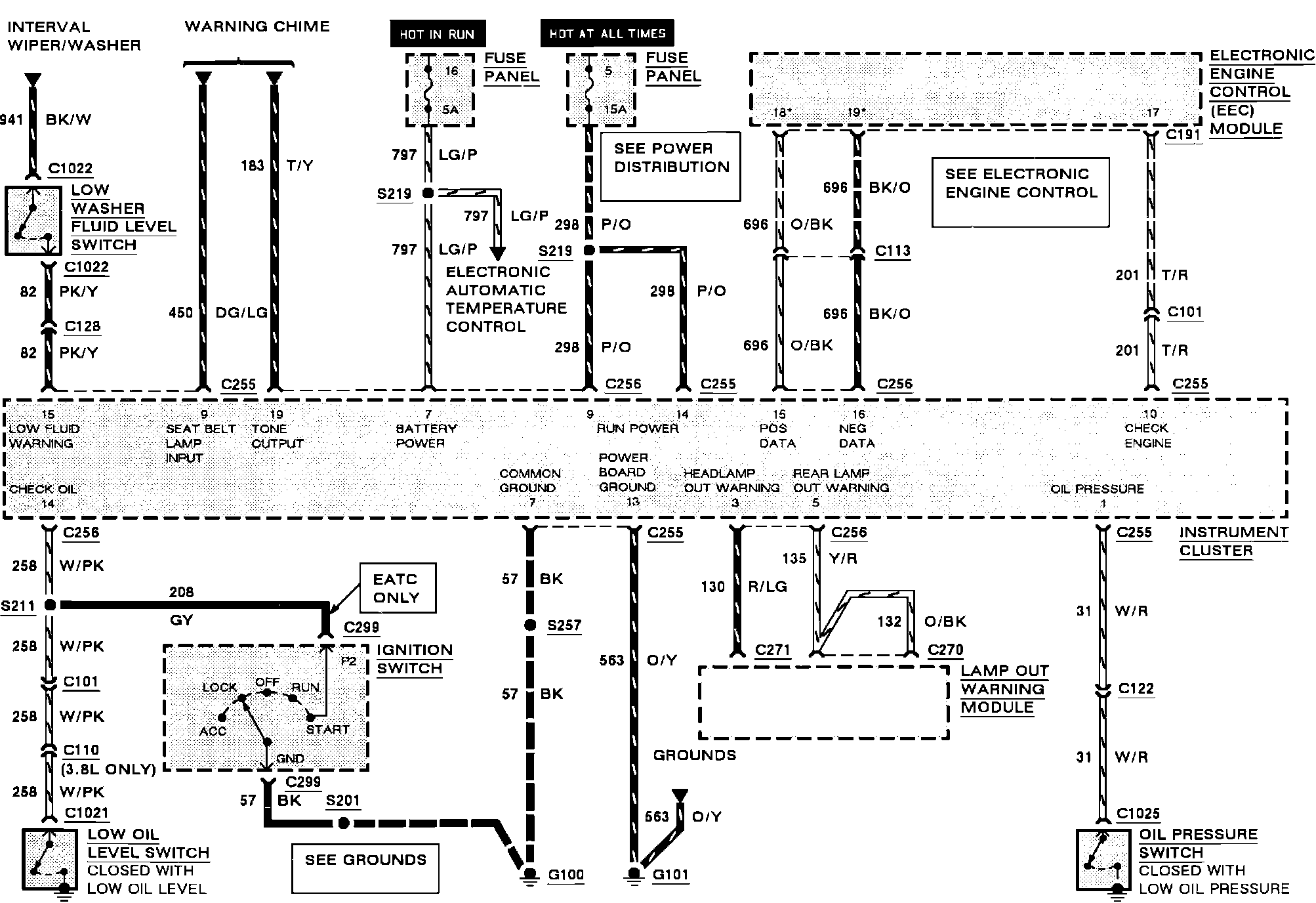

Instrument Panel (Electronic):

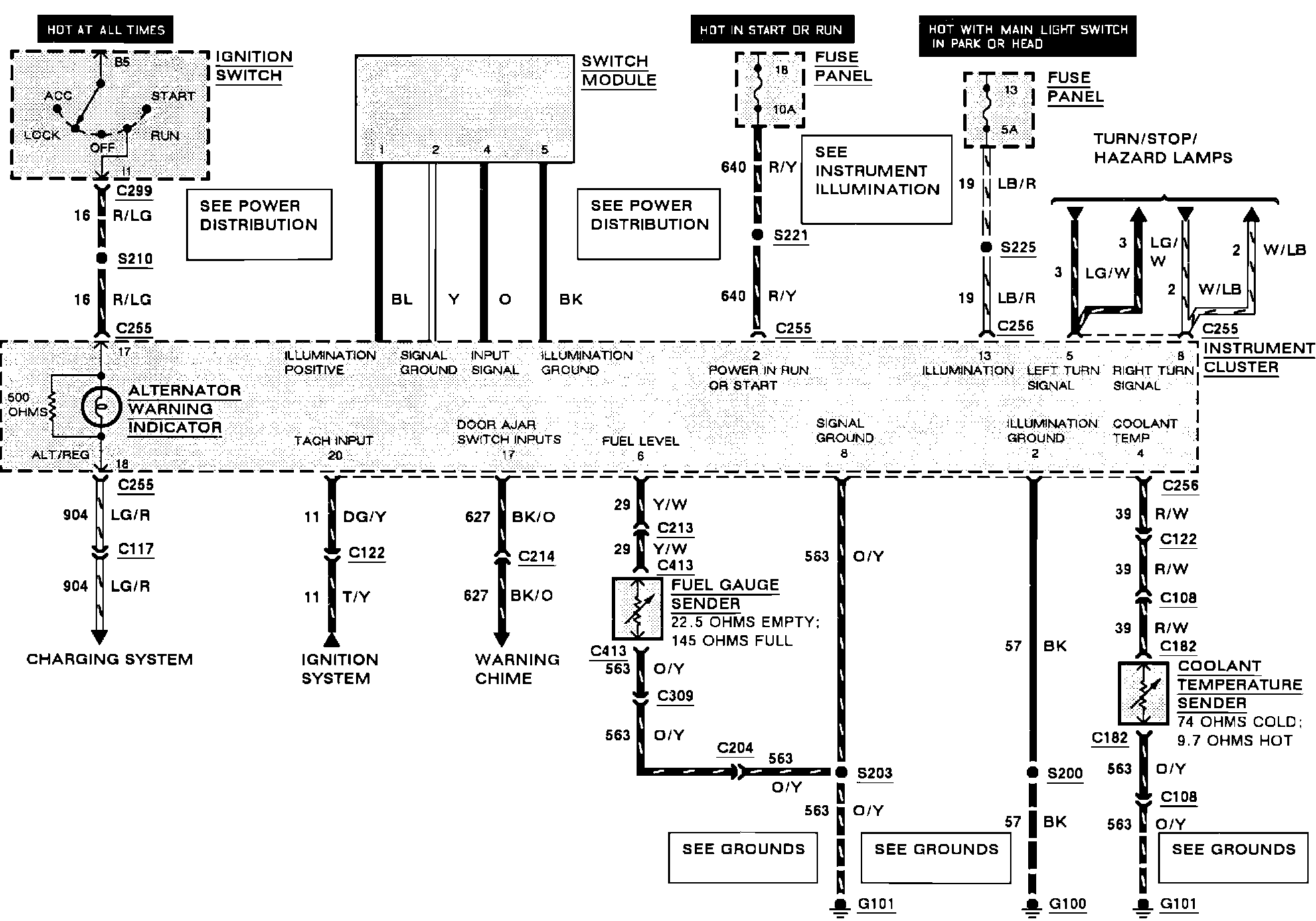

Instrument Panel (Electronic):

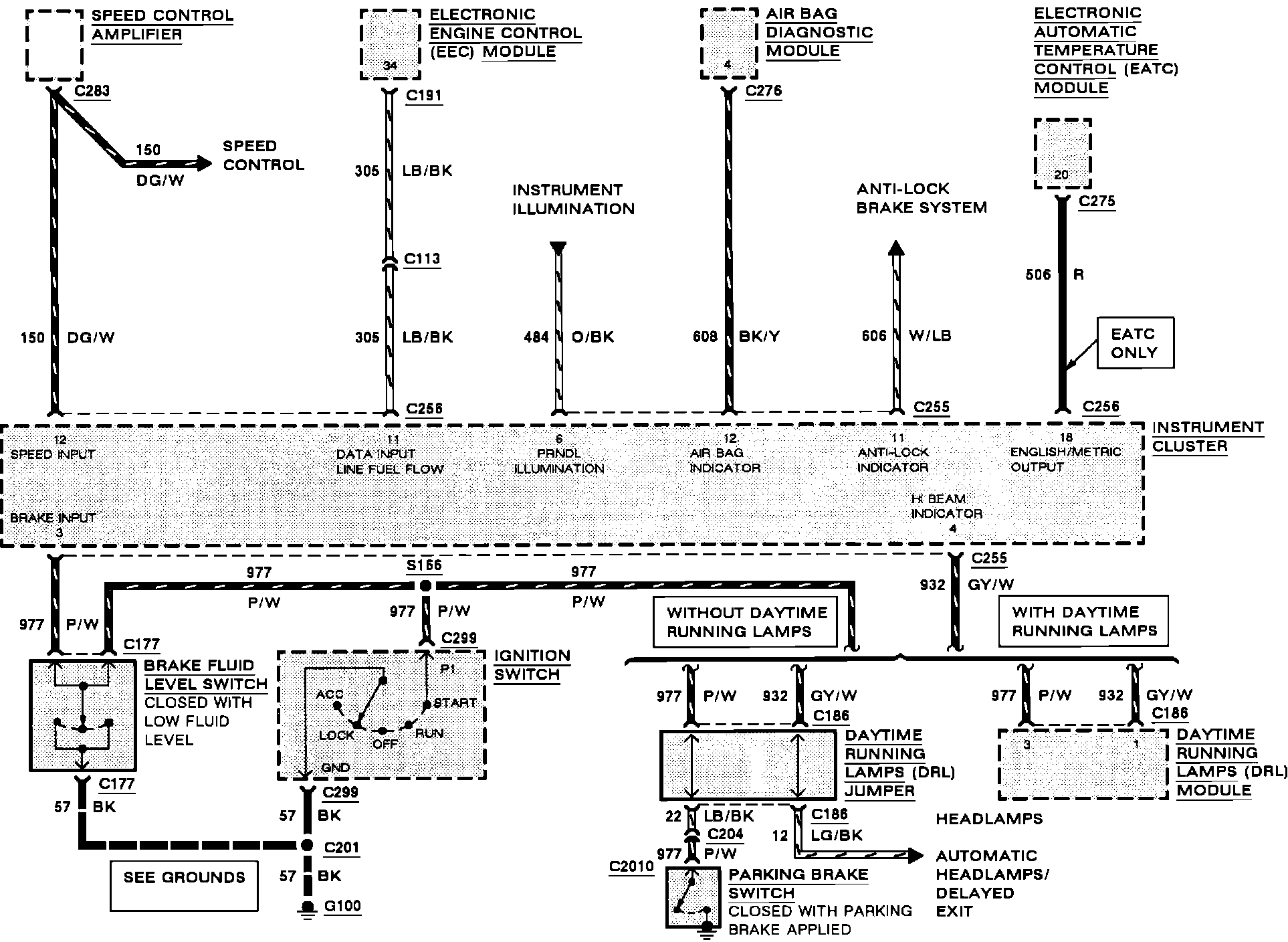

Instrument Panel (Electronic):
