Home >> Mercury >> 1991 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Instrument Cluster >> Analog

Analog

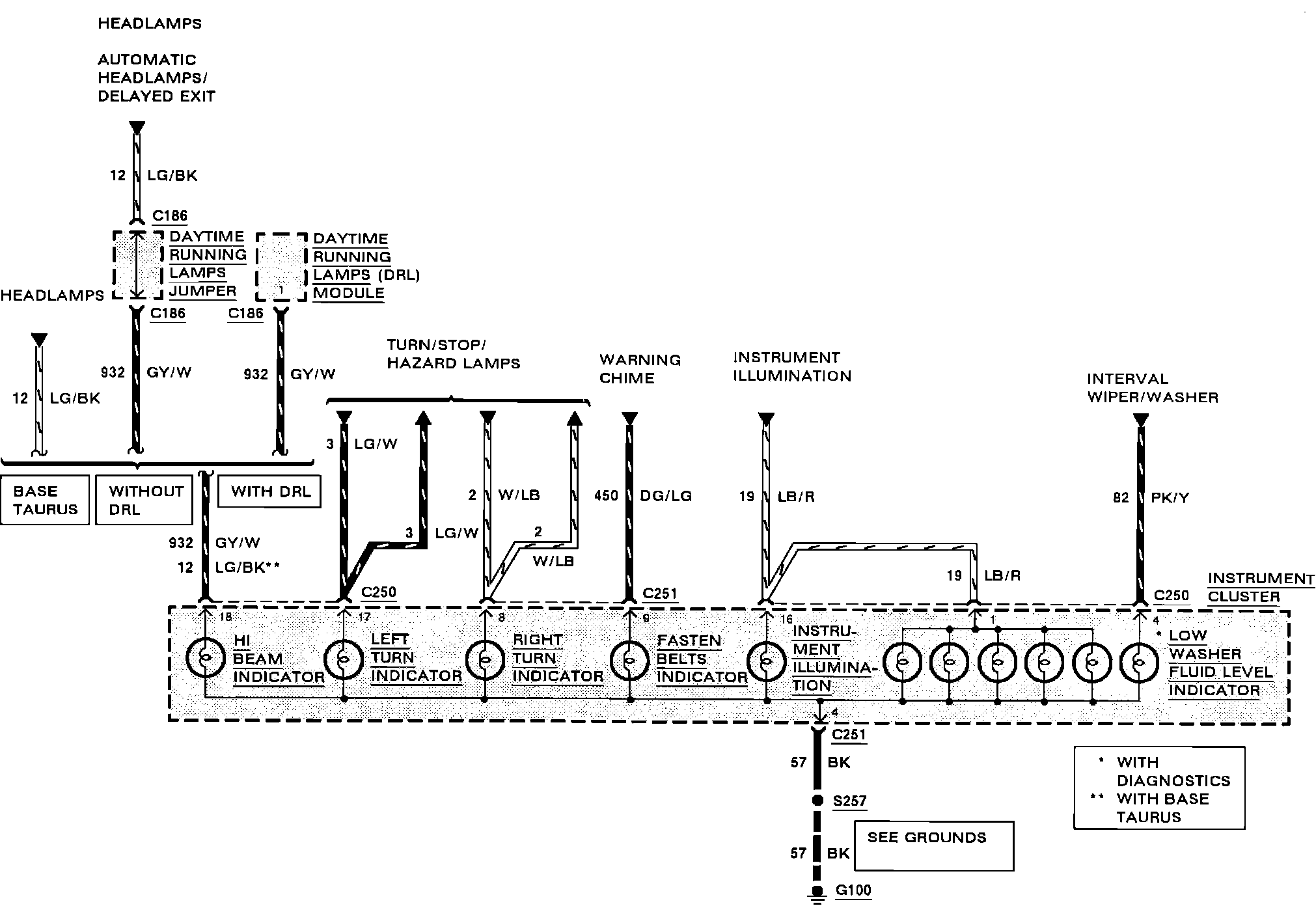

Instrument Panel (Analog):

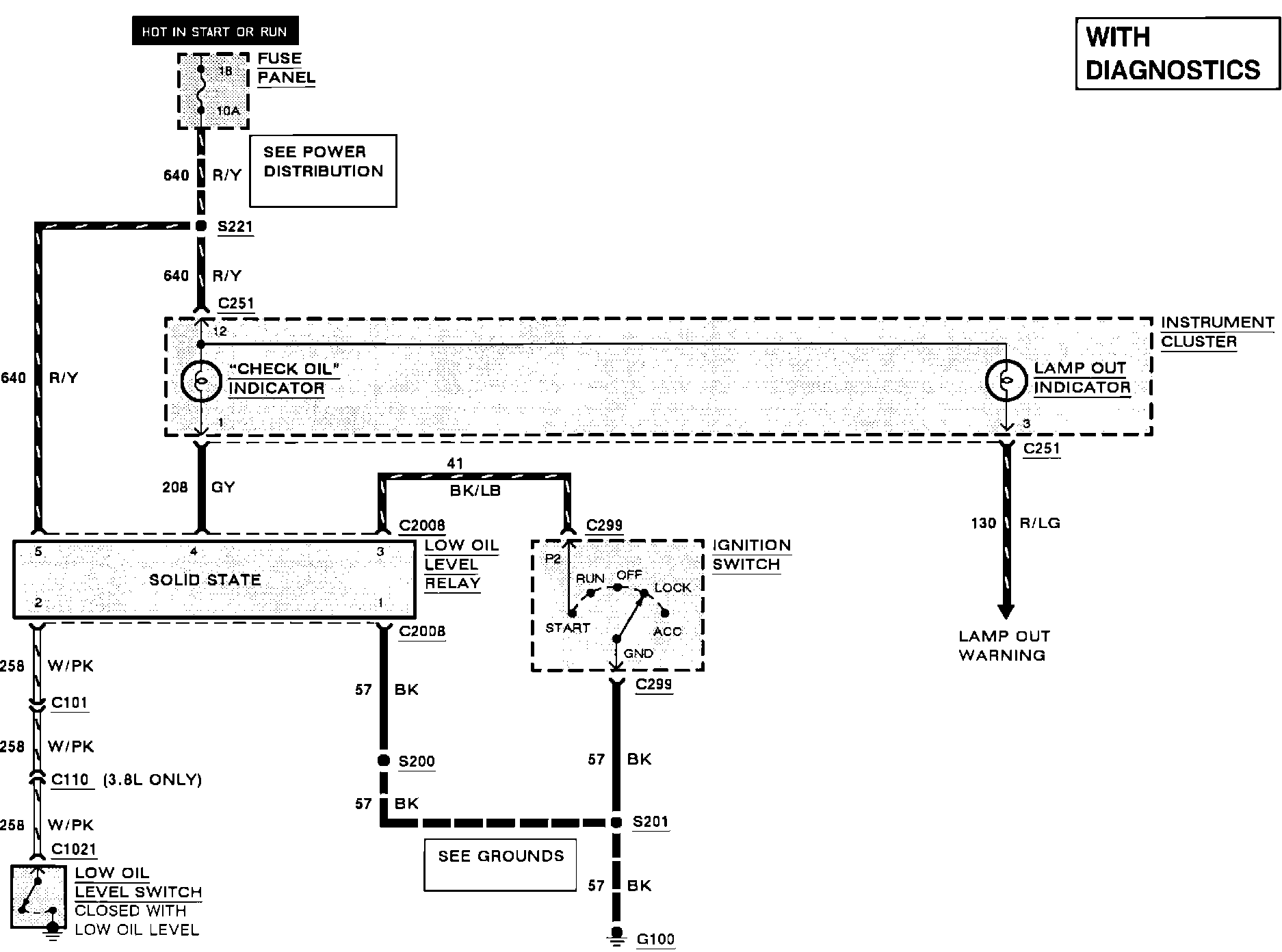

Instrument Panel (Analog):

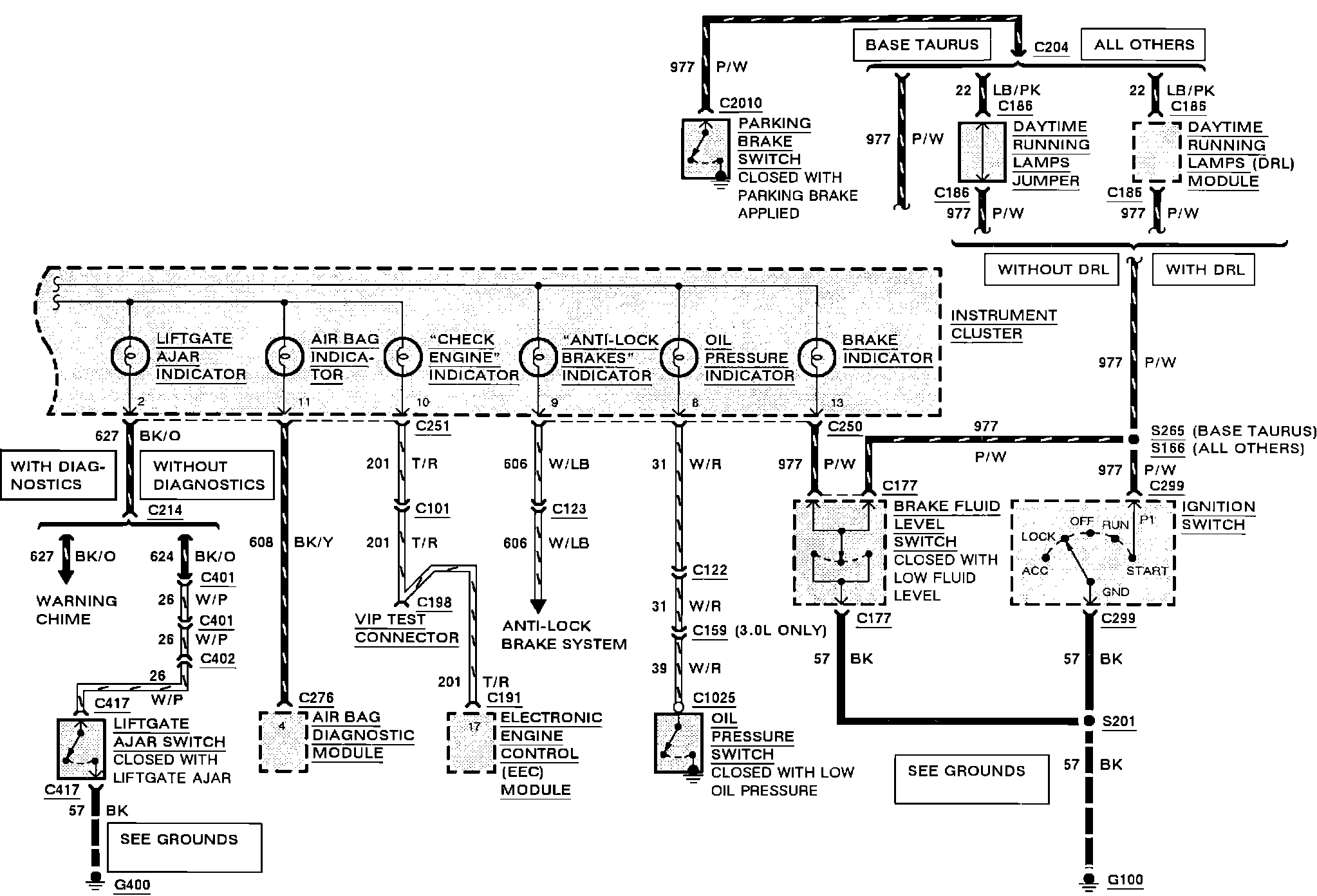

Instrument Panel (Analog):

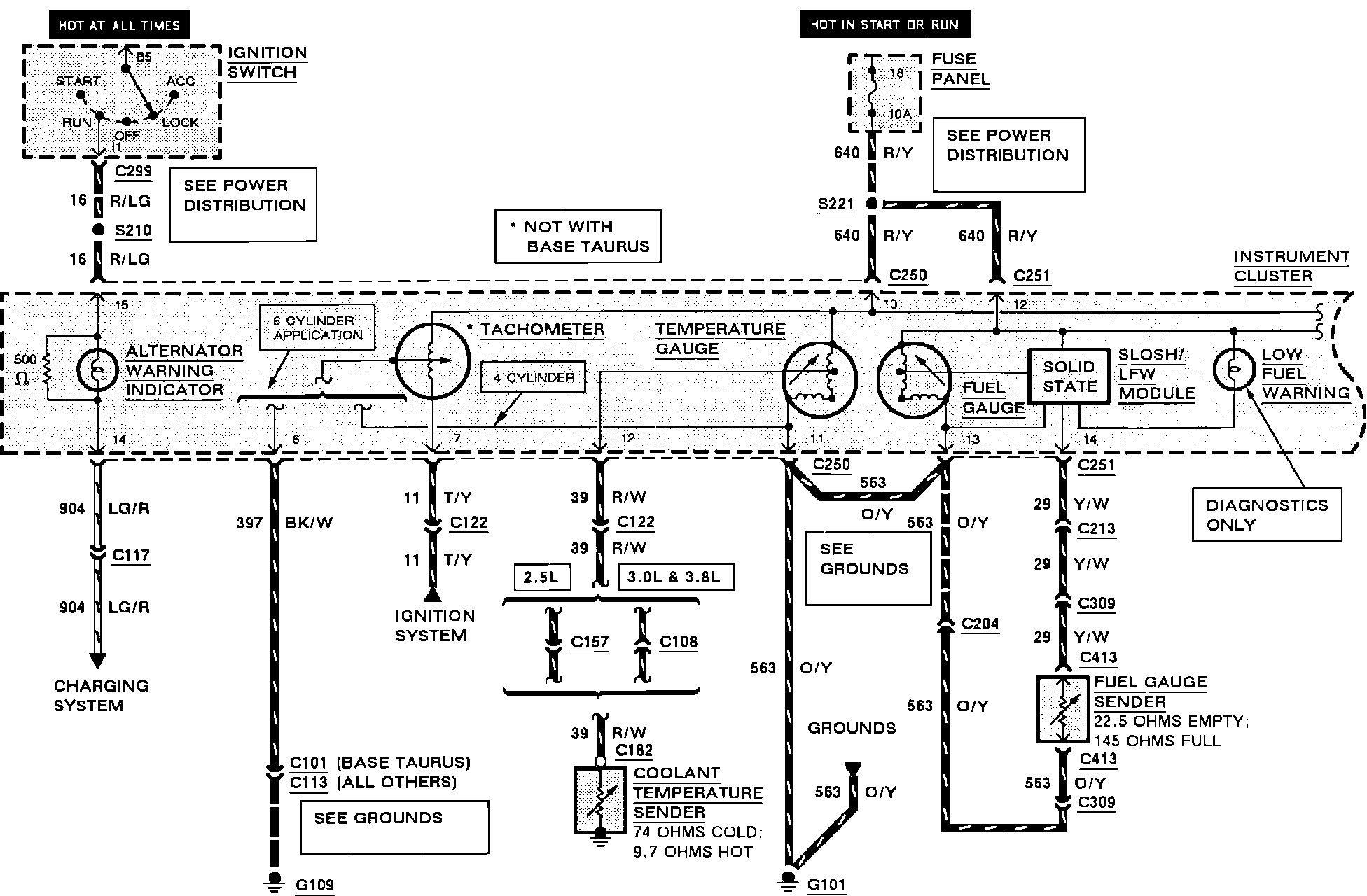

Instrument Panel (Analog):
