Analog

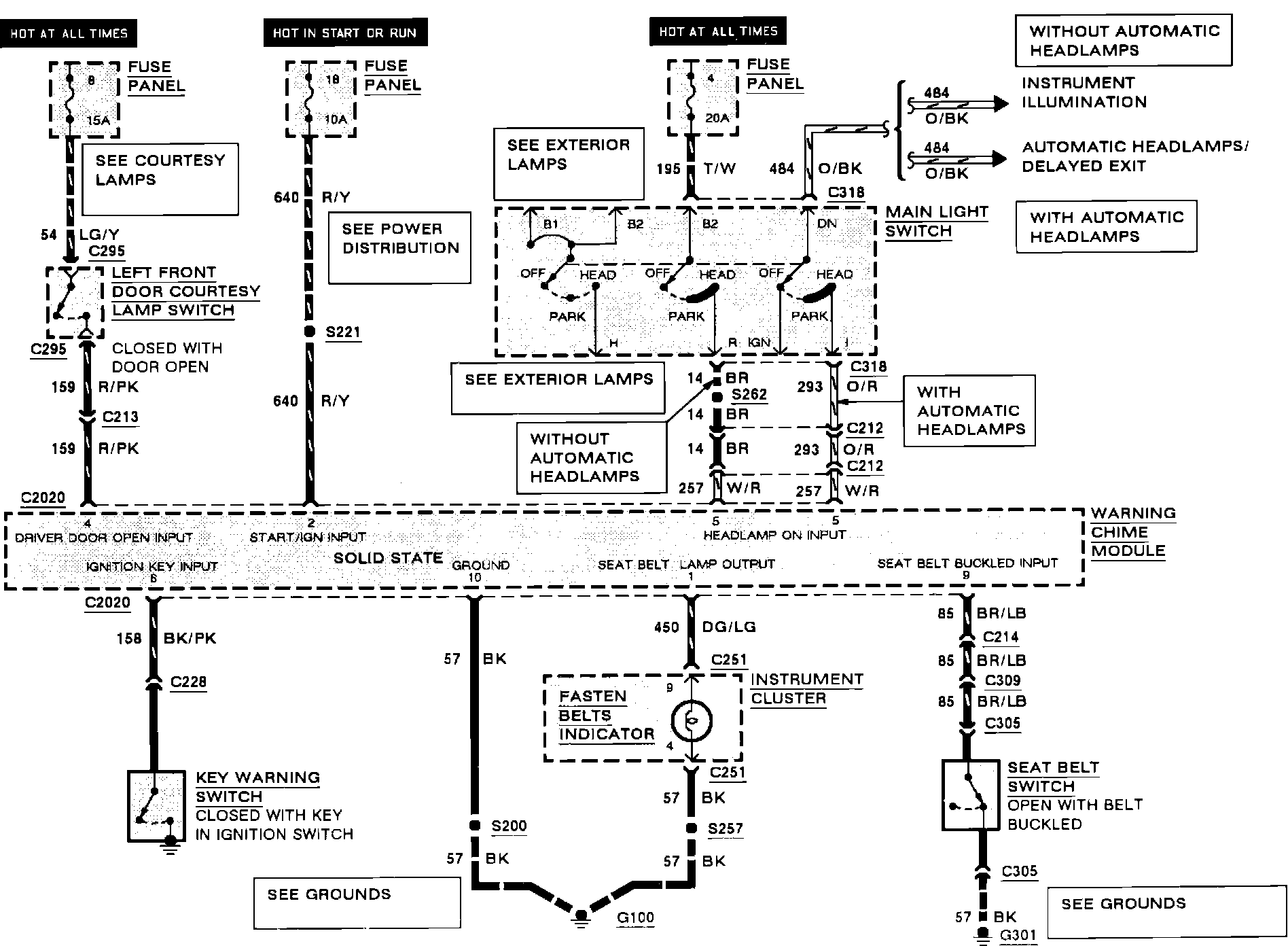

Warning Chime (Analog Cluster):

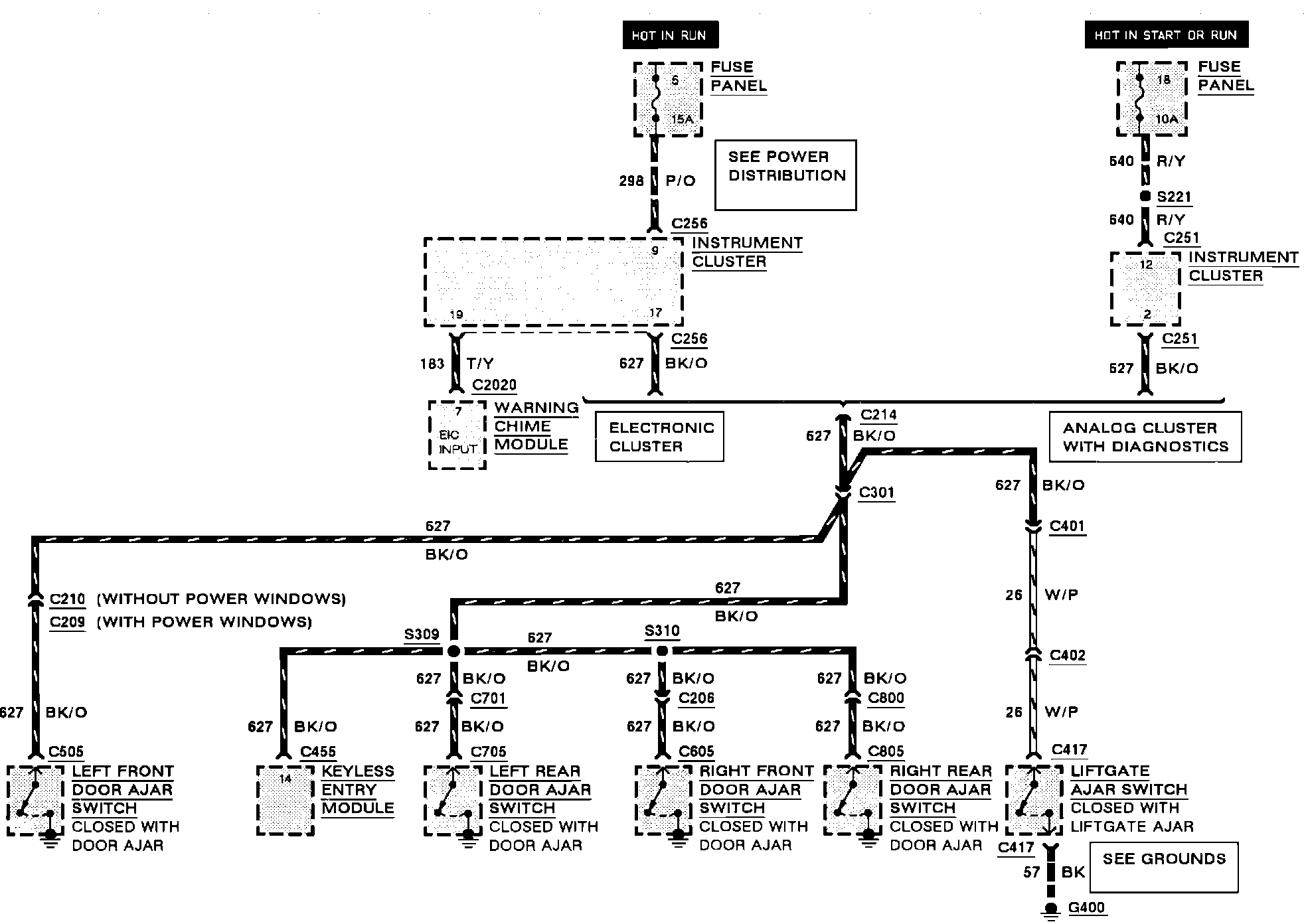

Instrument Panel (Analog):



Warning Chime:



Instrument Panel (Analog):



Instrument Panel (Analog):



Instrument Panel (Analog):
