Home >> Mercury >> 1991 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> J Poor Tracking During ABS Function >> J5

J5

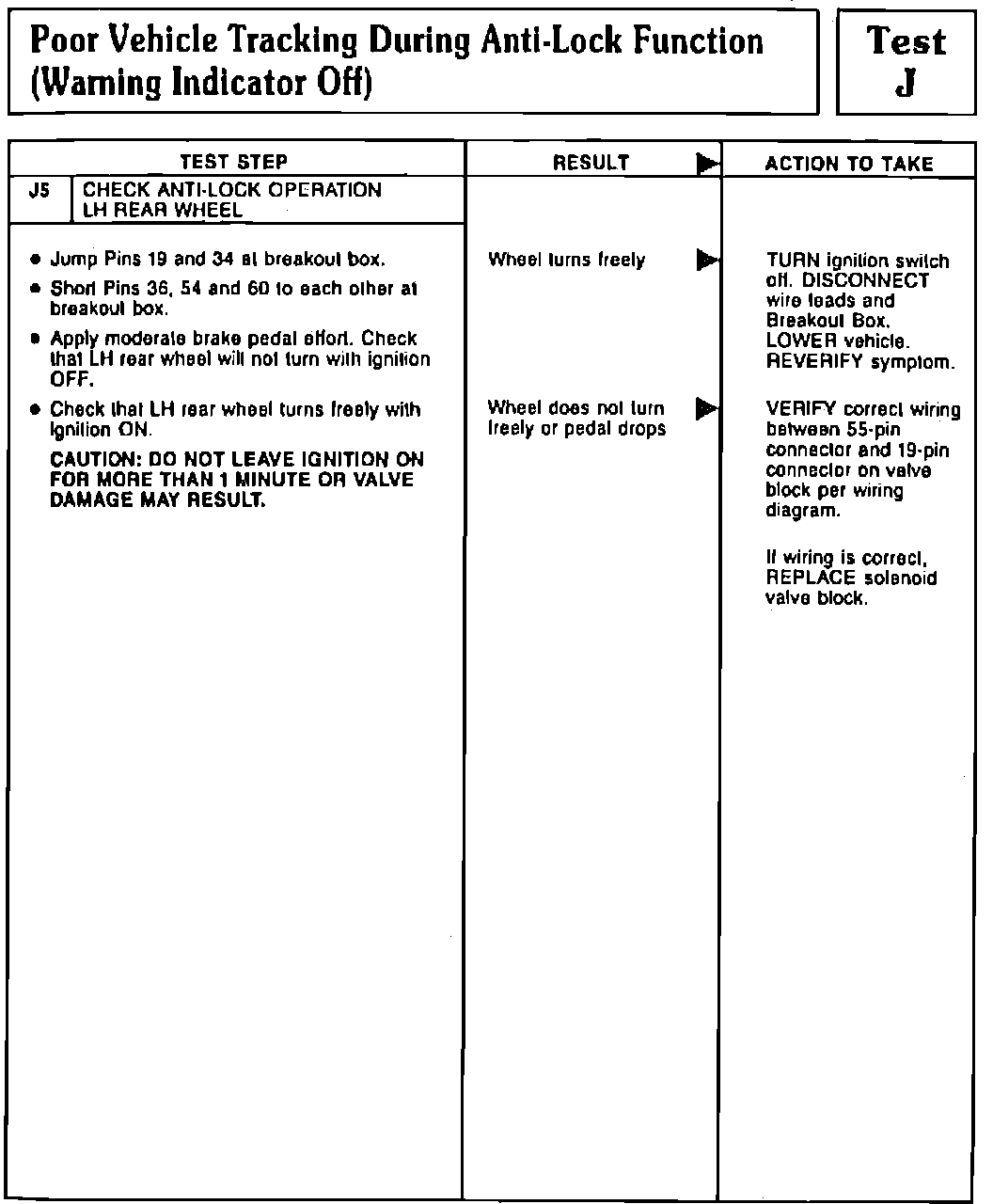

Fig. 146 Test J5 (Poor Vehicle Tracking During ABS Function). 1991 Sable & Taurus:
