F Brake Lamp ON (Antilock Lamp OFF, Parking Brake OFF)
>>
F1 to F2
F1 to F2

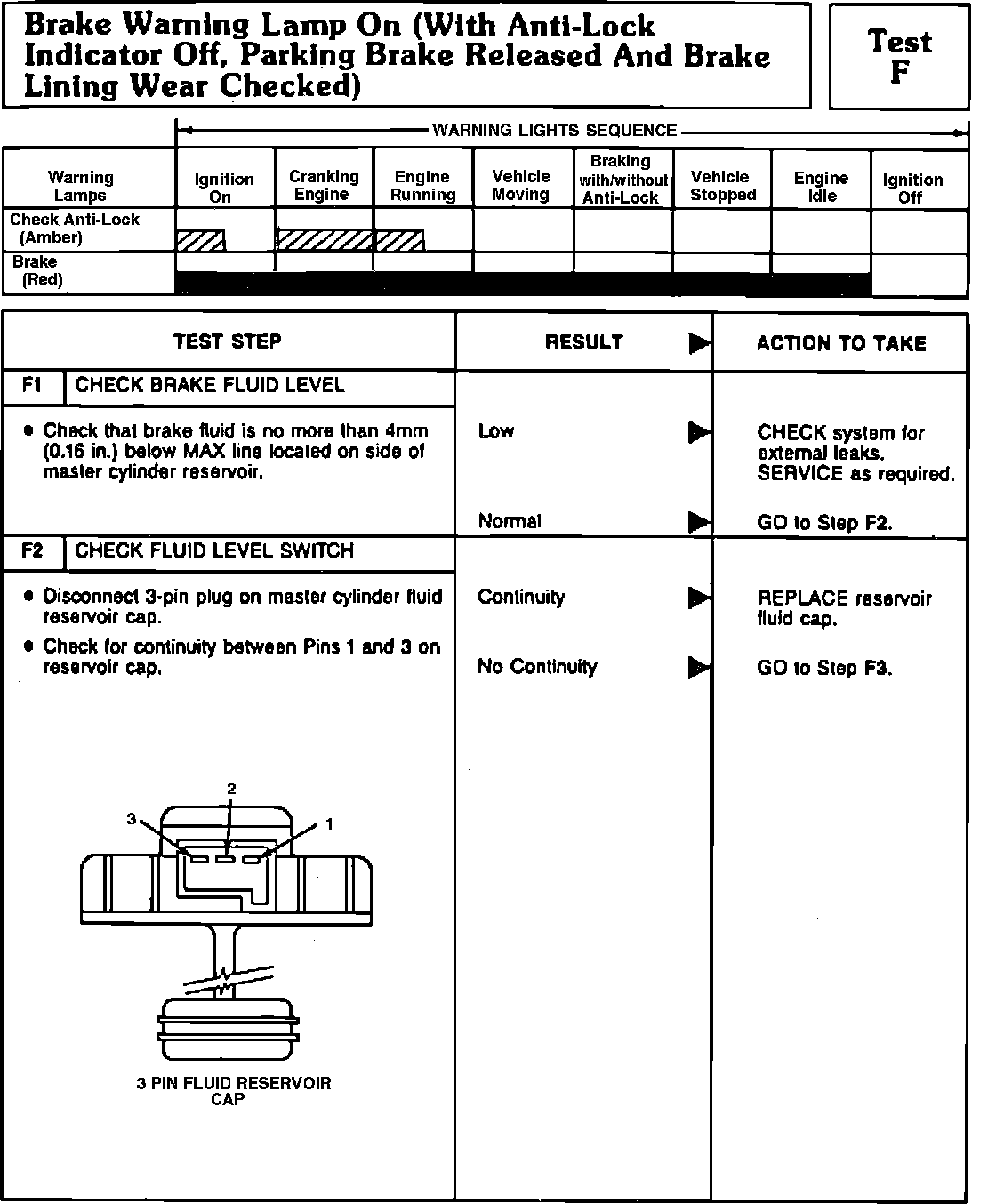

Fig. 130 Tests F1 & F2 (Brake Lamp ON W/ABS Lamp OFF, Parking Brake Released & Lining Wear Checked). Except 1991 Town Car:
