Home >> Mercury >> 1991 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> EE Fluid Level Indicator/Pedal Travel Switch/Pressure Switch >> EE8f to EE8h

EE8f to EE8h

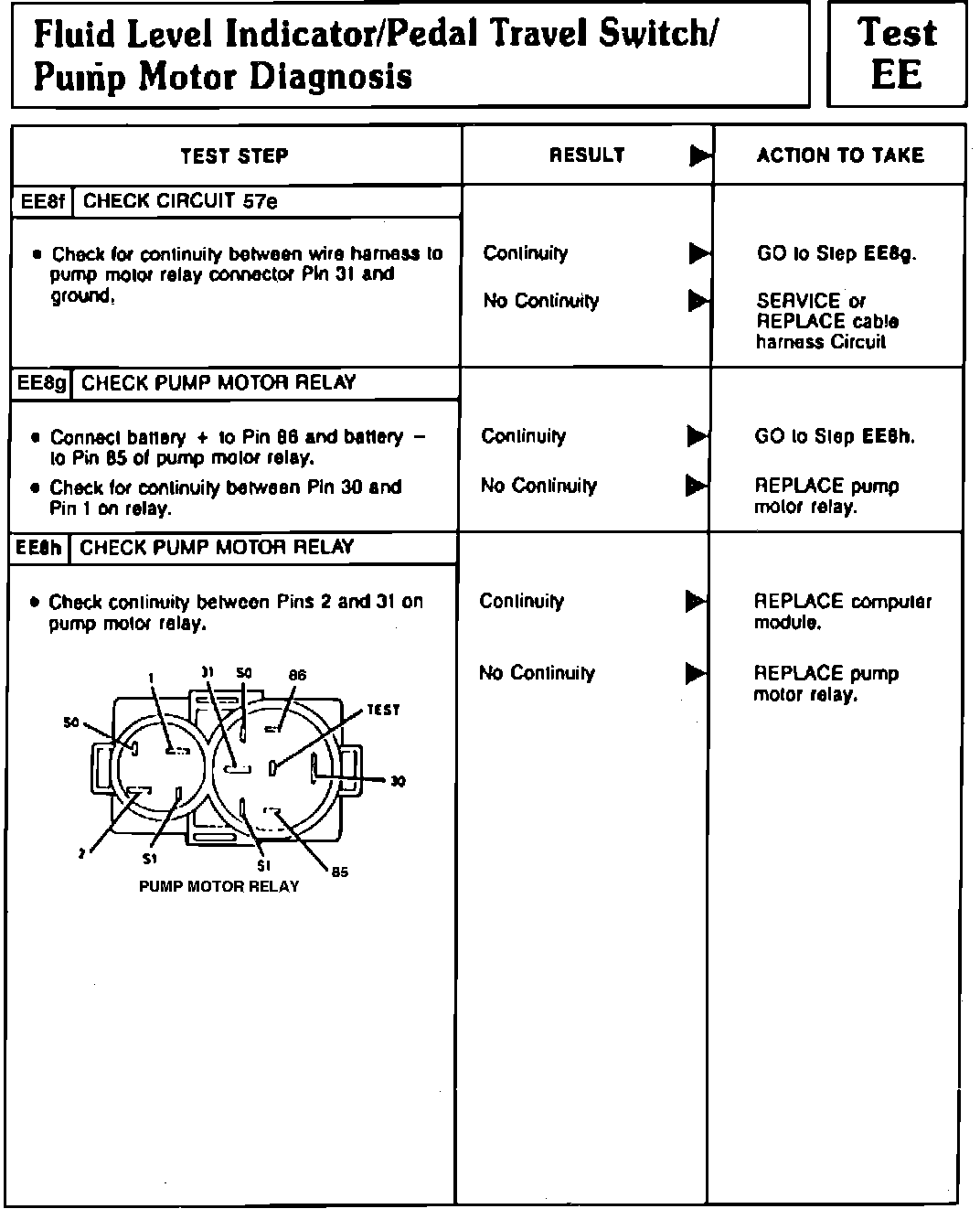

Fig. 76 Tests EE8f, EE8g & EE8h (Fluid Level Indicator/Pedal Travel Switch/Pump Motor). Except 1991 Town Car:
