Home >> Mercury >> 1991 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> EE Fluid Level Indicator/Pedal Travel Switch/Pressure Switch >> EE3A to EE4A

EE3A to EE4A

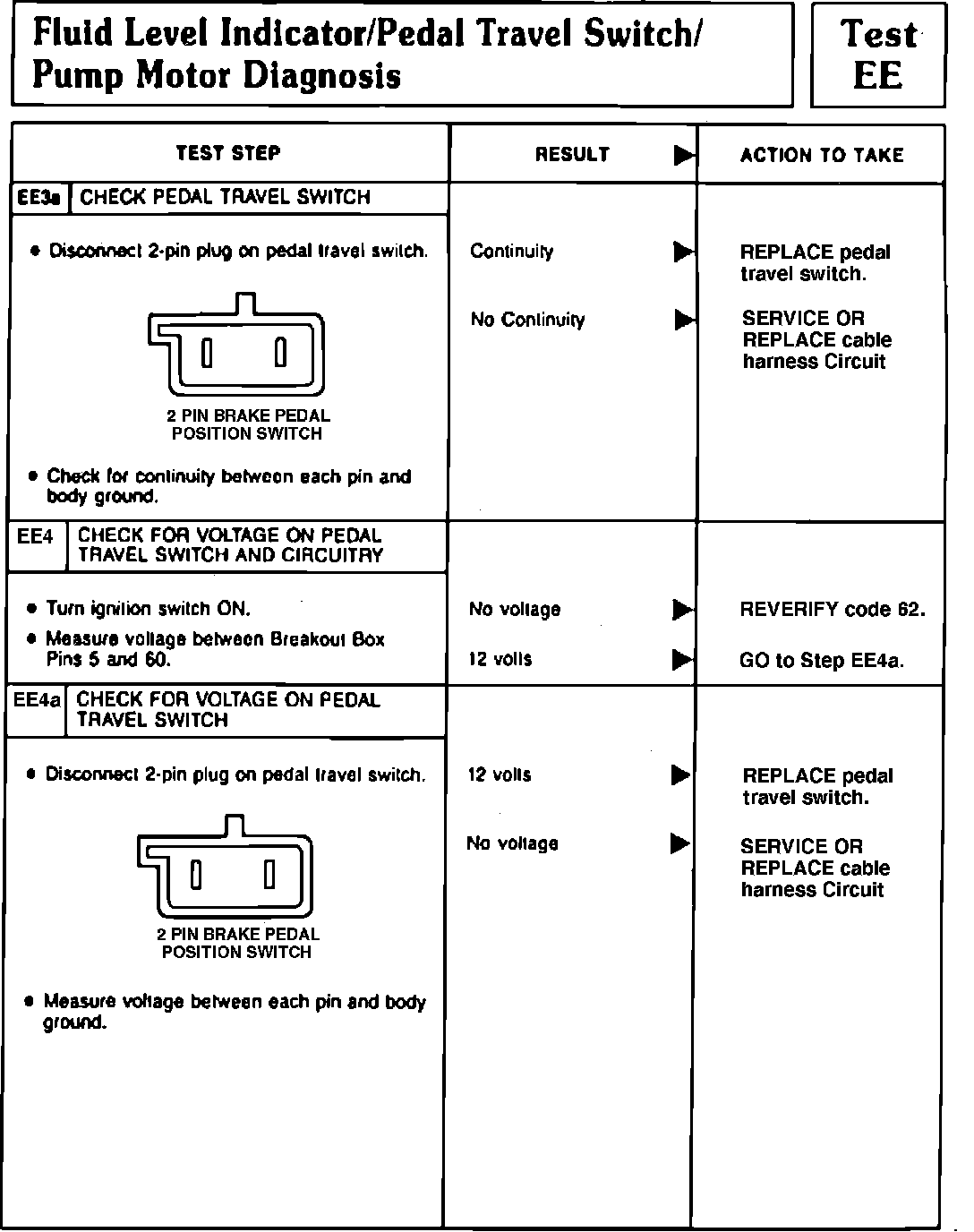

Fig. 62 Tests EE3a, EE4 & EE4a (Fluid Level Indicator/Pedal Travel Switch/Pump Motor). Except 1991 Town Car:
