EE1

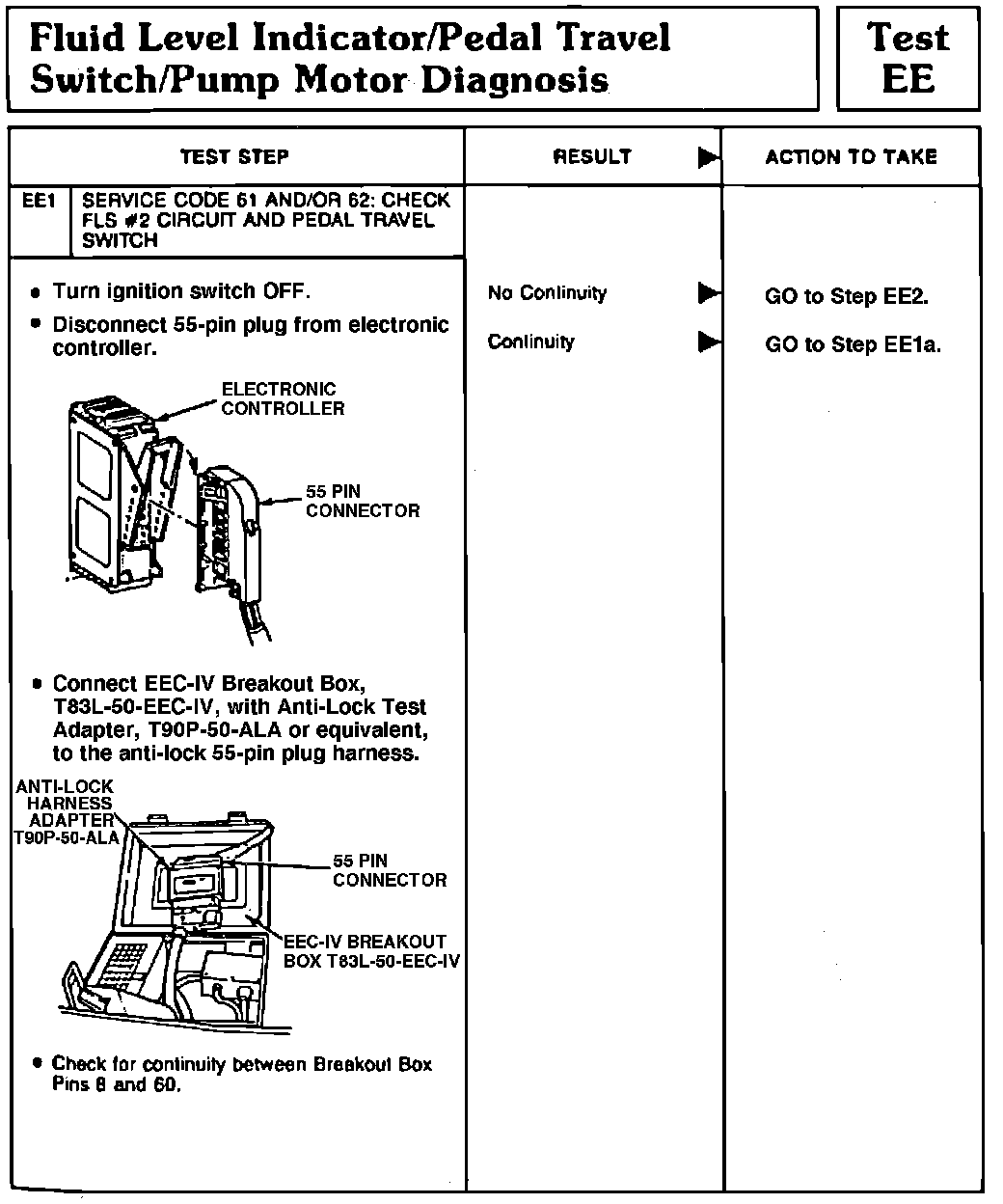

Fig. 55 Test EE1 (Fluid Level Indicator, Pedal Travel Switch & Pump Motor). 1991 Continental/Sable & Taurus:
