Home >> Mercury >> 1991 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> E ABS Pump Motor Runs Continuously (Ignition ON / OFF) >> E3

E3

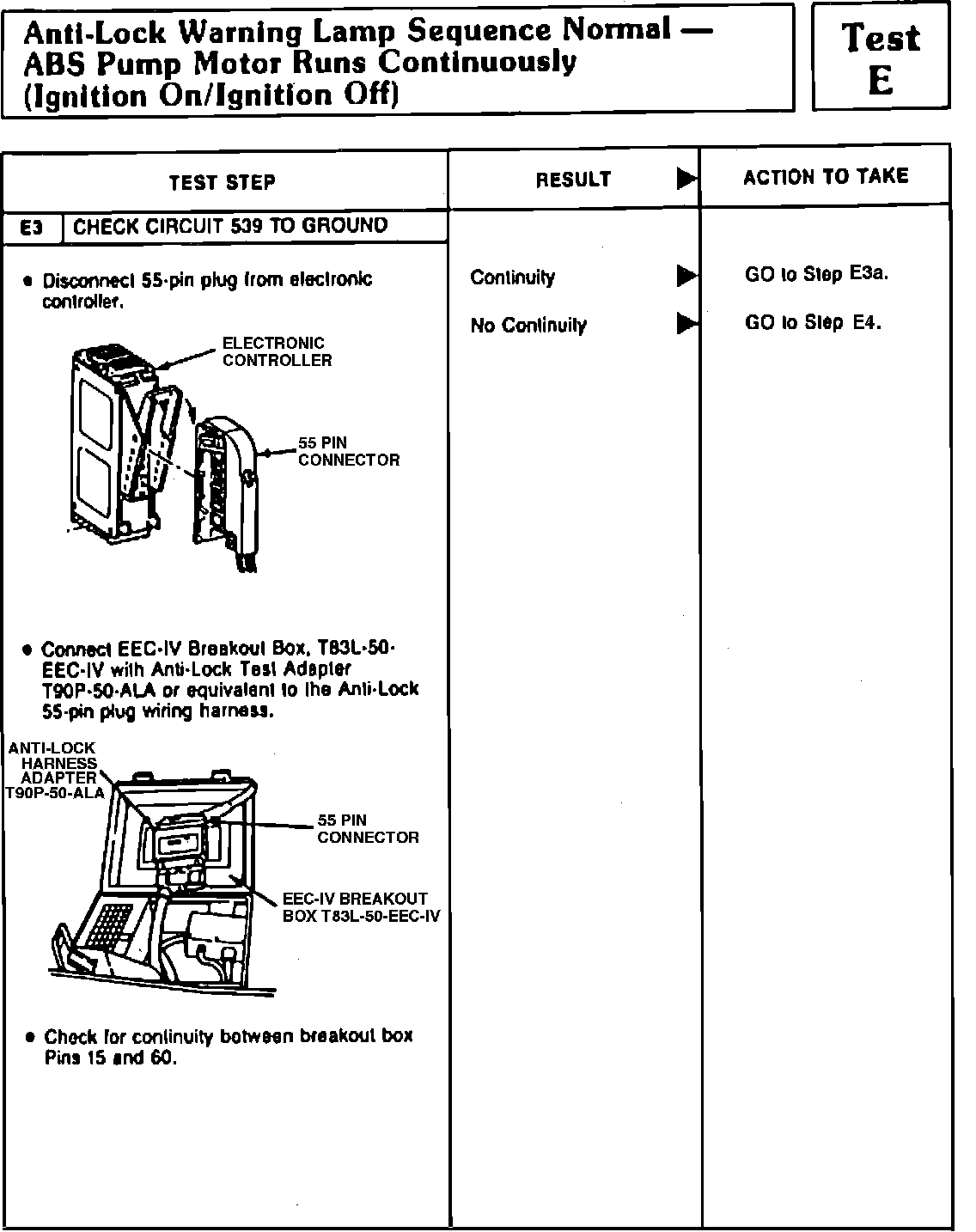

Fig. 128 Test E3 (Warning Sequence Normal/ABS Pump Motor Run Continuously):
