Home >> Mercury >> 1991 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> E ABS Pump Motor Runs Continuously (Ignition ON / OFF) >> E1 to E2

E1 to E2

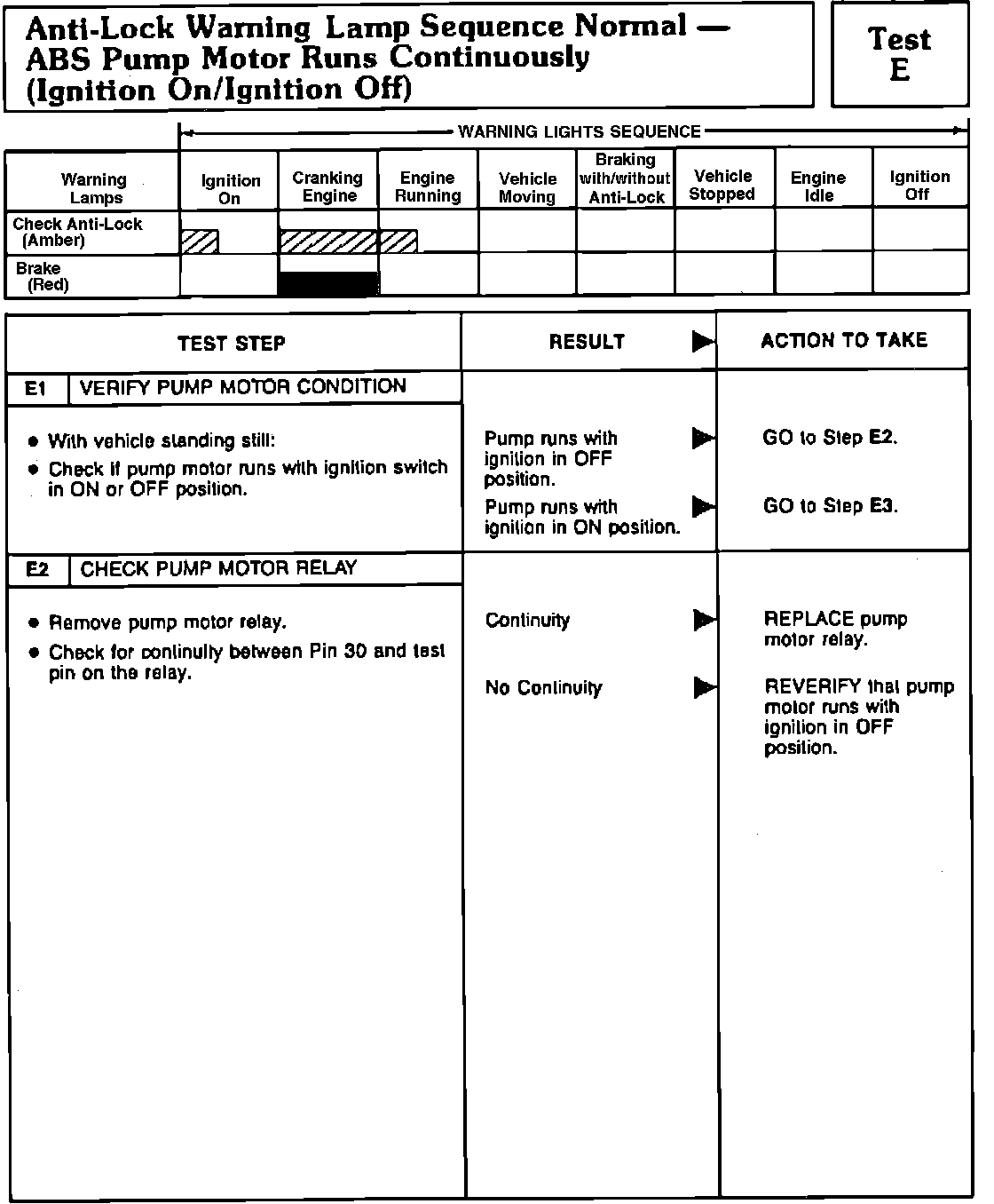

Fig. 126 Tests E1 & E2 (Warning Sequence Normal/ABS Pump Motor Run Continuously). Except 1991 Town Car:
