Home >> Mercury >> 1991 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> DD Wheel Sensor Diagnosis >> DD4a to DD6

DD4a to DD6

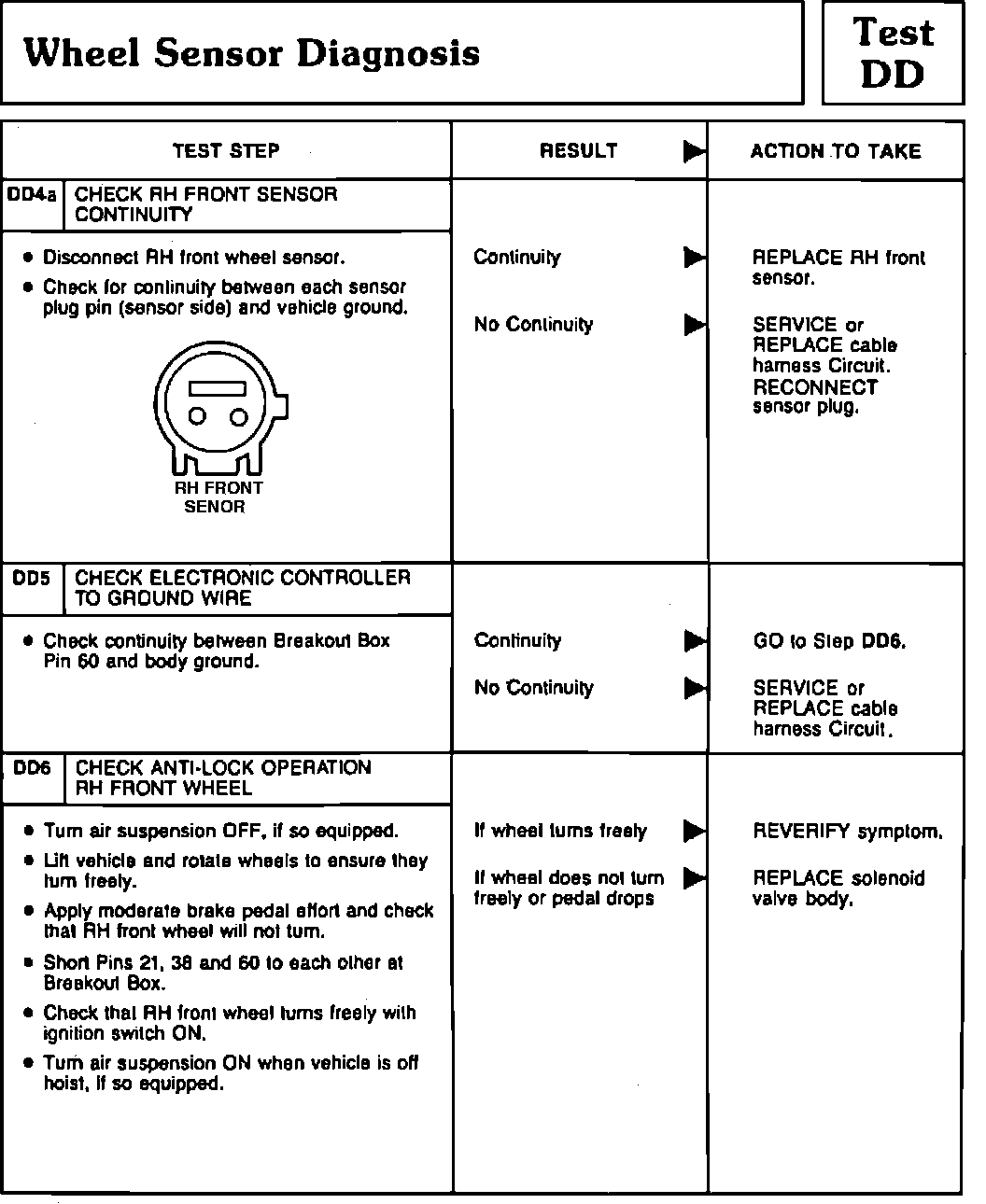

Fig. 47 Tests DD4a, DD5 & DD6 (Wheel Sensor). Except 1991 Town Car:
