Home >> Mercury >> 1991 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> DD Wheel Sensor Diagnosis >> DD4 DTC 52 and/or 72

DD4 DTC 52 and/or 72

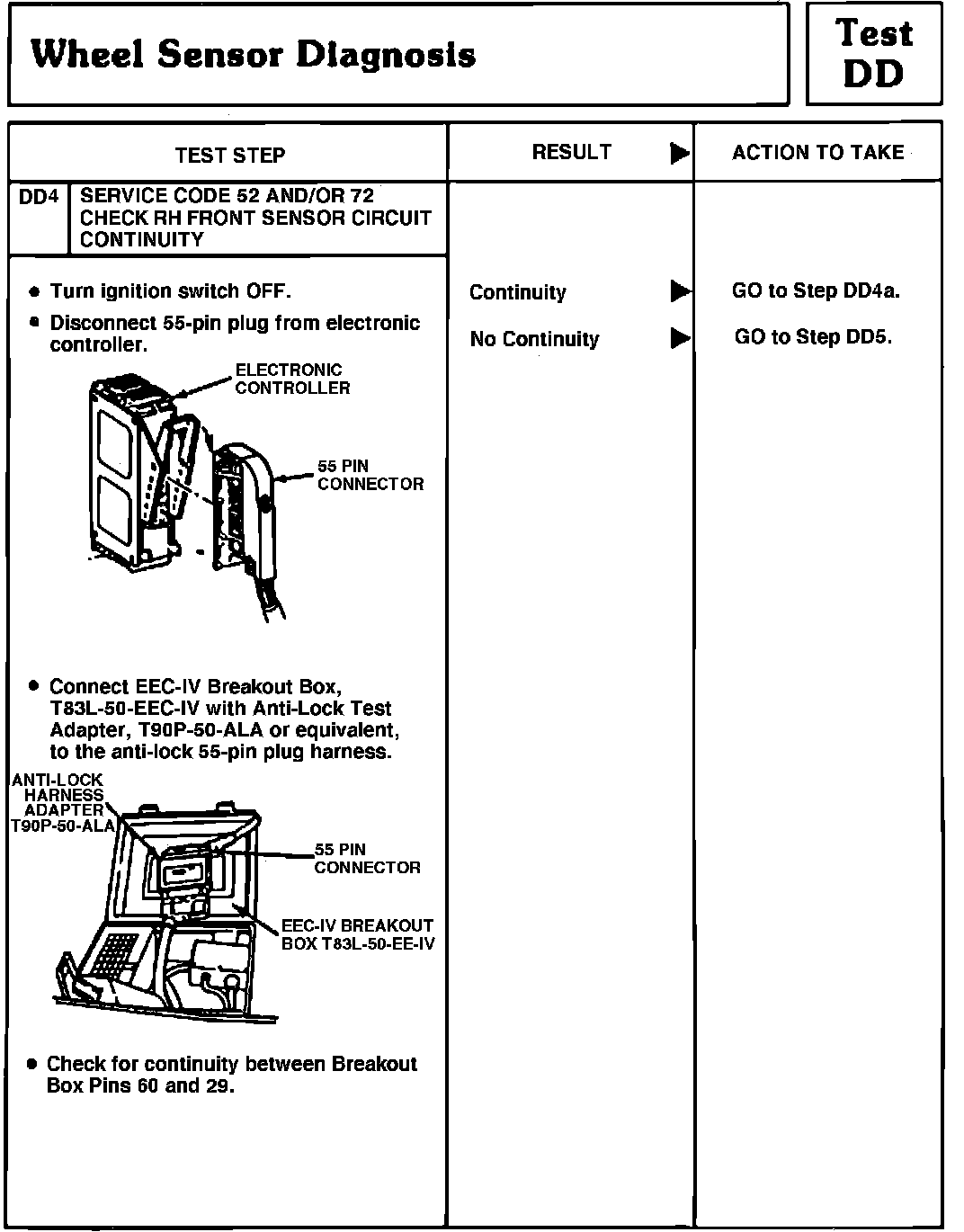

Fig. 46 Test DD4 (Wheel Sensor):
