CC DTC 31, 35, 41, 55 or 75 LH ABS Brake Sensor and Circuit
>>
CC1a to CC3
CC1a to CC3

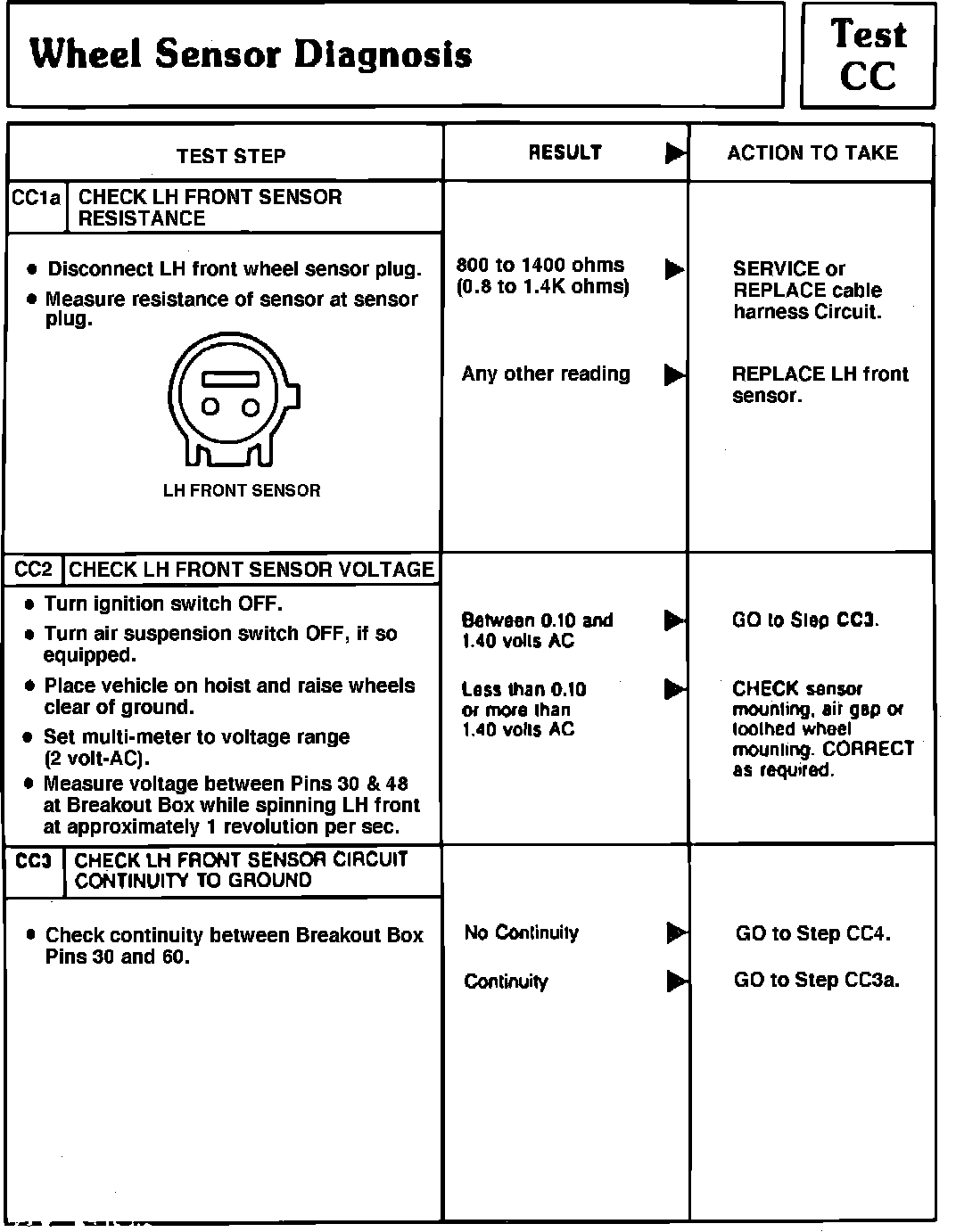

Fig. 33 Tests CC1a, CC2 & CC3 (Wheel Sensor):
