FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1991
>>
Sable V6-182 3.0L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
CC DTC 31, 35, 41, 55 or 75 LH ABS Brake Sensor and Circuit
>>
CC13a to CC15
CC13a to CC15

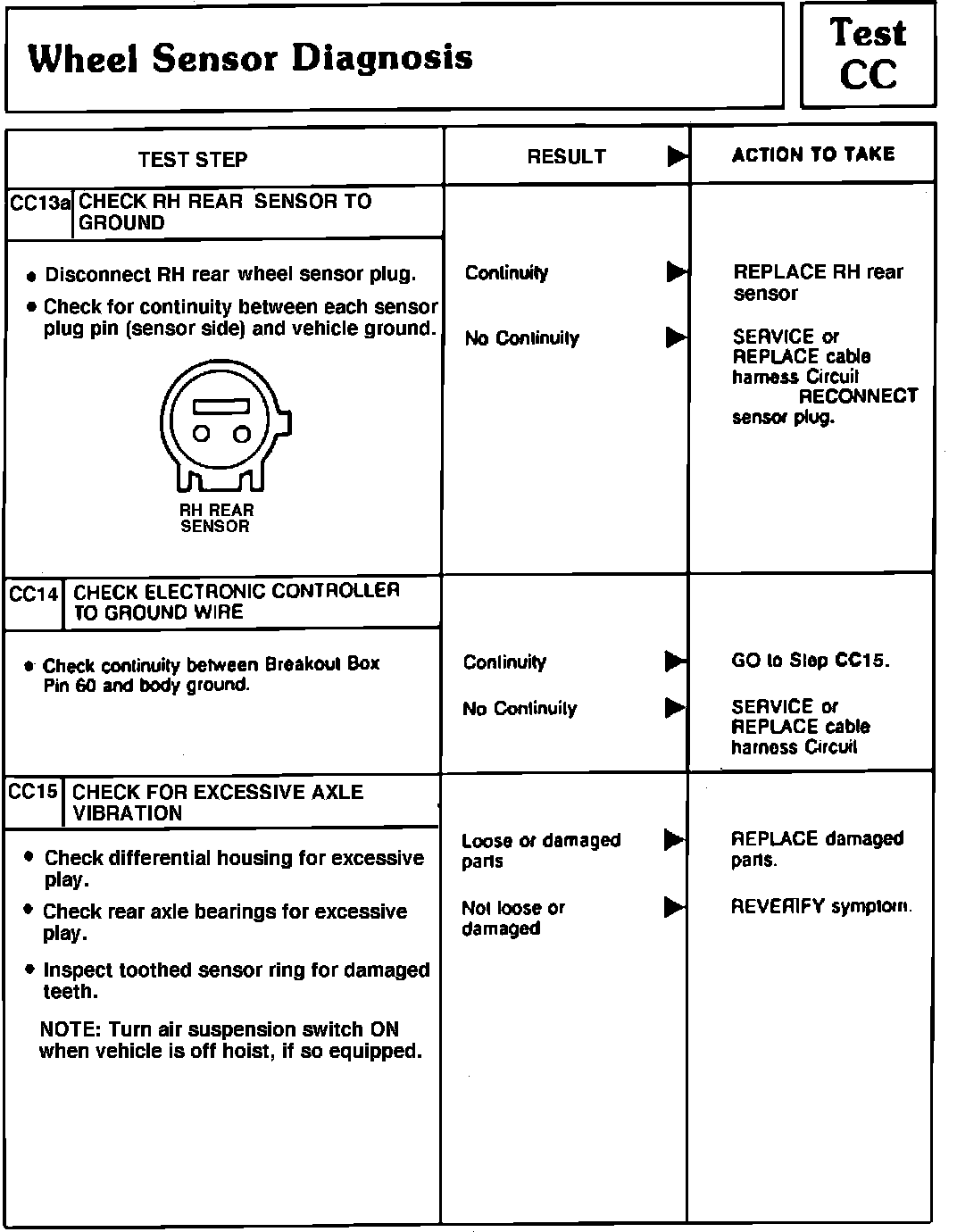

Fig. 40 Tests CC13a, CC14 & CC15 (Wheel Sensor):
