CC DTC 31, 35, 41, 55 or 75 LH ABS Brake Sensor and Circuit
>>
CC11a to CC13
CC11a to CC13

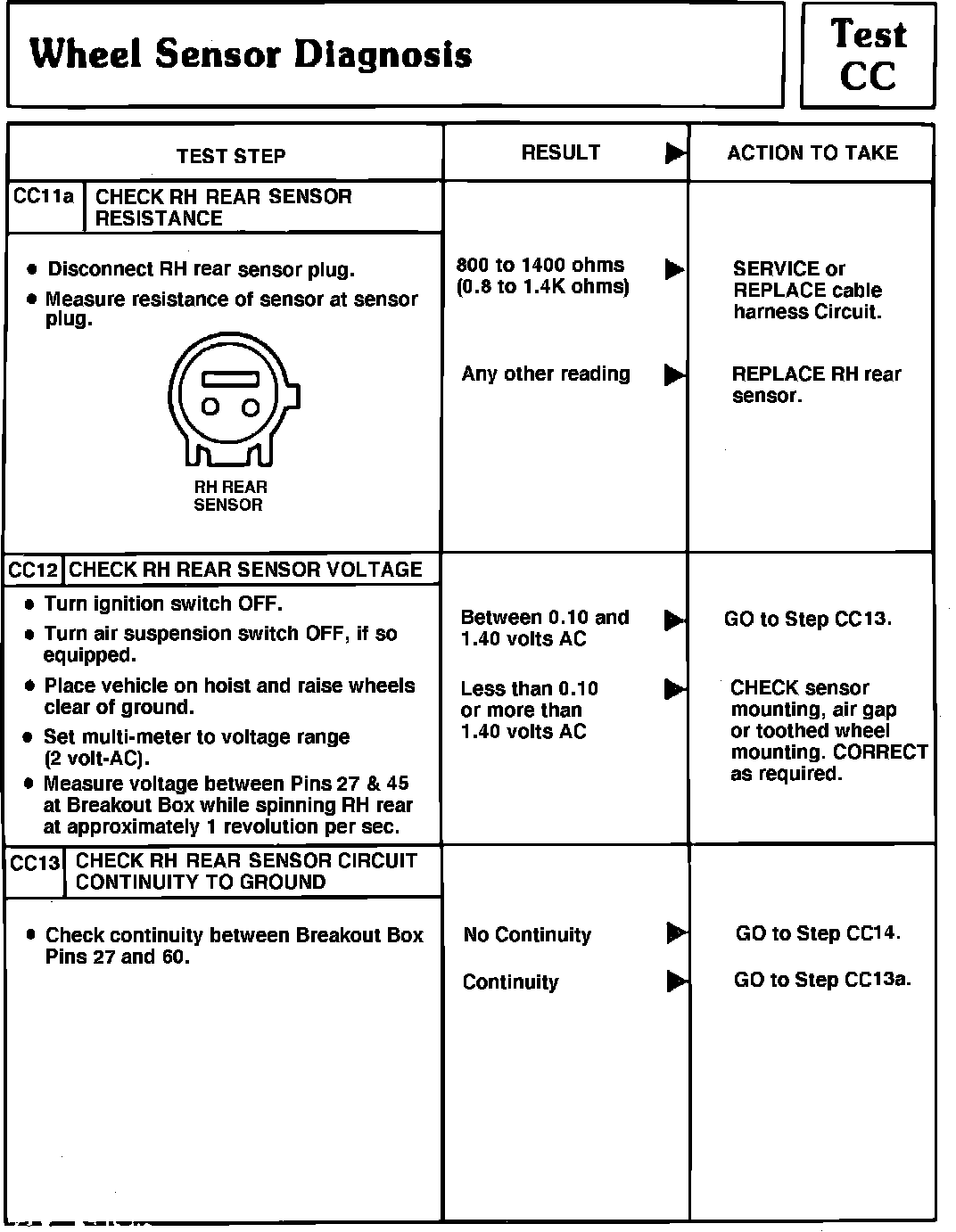

Fig. 39 Tests CC11a, CC12 & CC13 (Wheel Sensor):
