Home >> Mercury >> 1991 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> C Indicator ON or False Cycling >> C13b to C13d

C13b to C13d

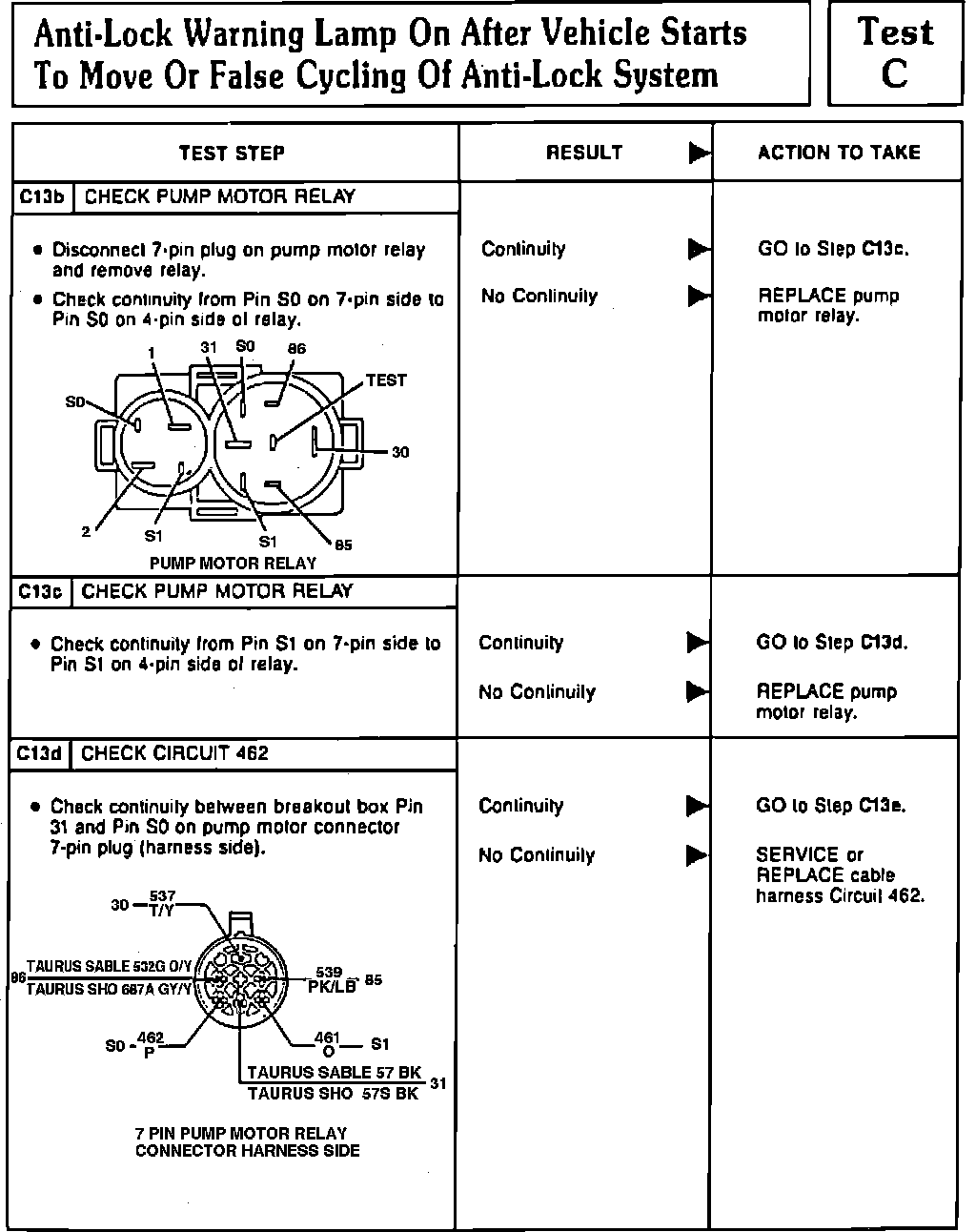

Fig. 113 Tests C13b, C13c & C13d (ABS Lamp ON After Vehicle Starts):
