Home >> Mercury >> 1991 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> B ABS Indicator ON after engine starts (Brake Indicator Off) >> B4A

B4A

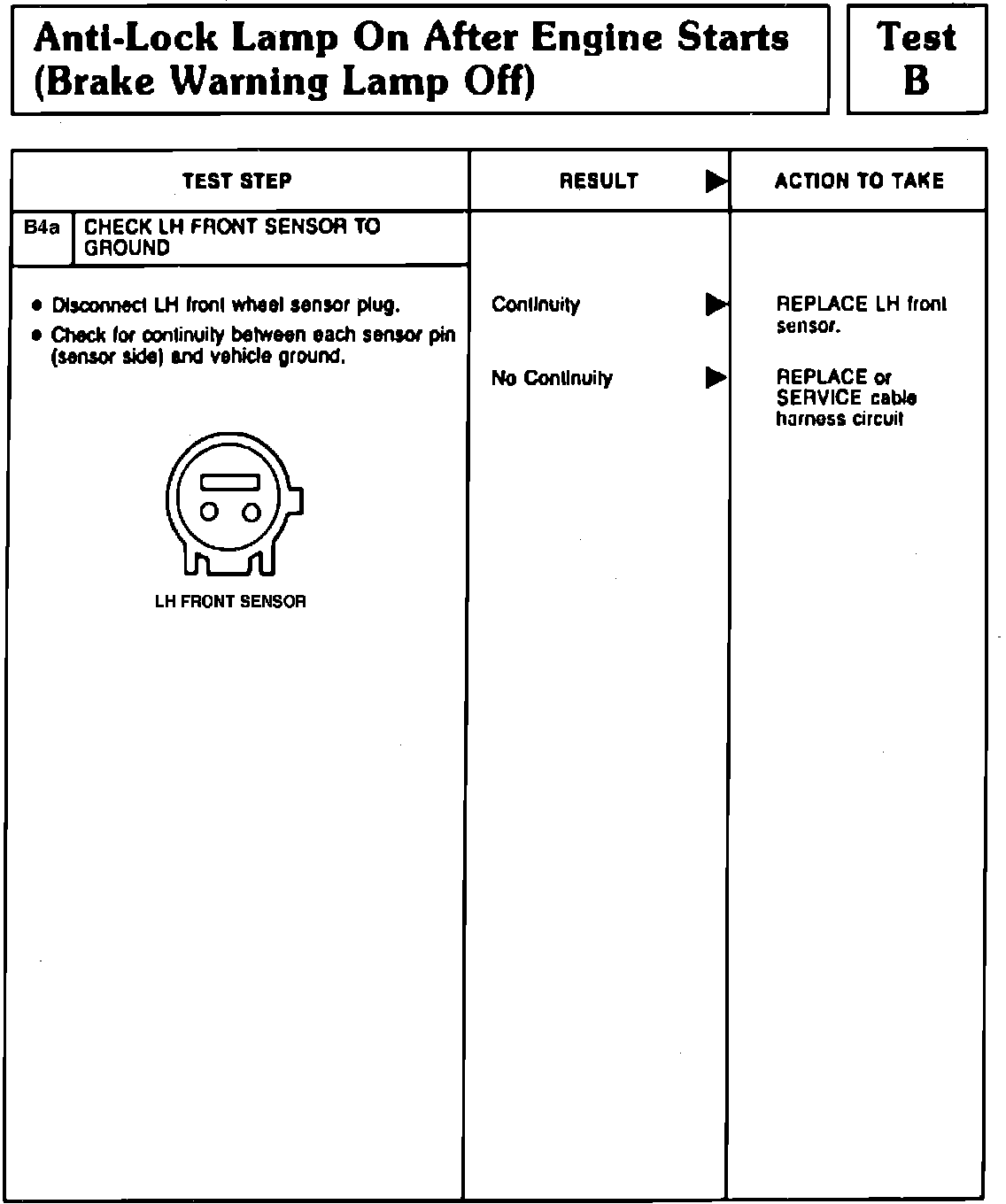

Fig. 105 Test B4a (ABS Lamp On After Engine Starts):
