Home >> Mercury >> 1991 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> A ABS Warning Indicator ON (With Brake Warning Indicator OFF) >> A3f to A5

A3f to A5

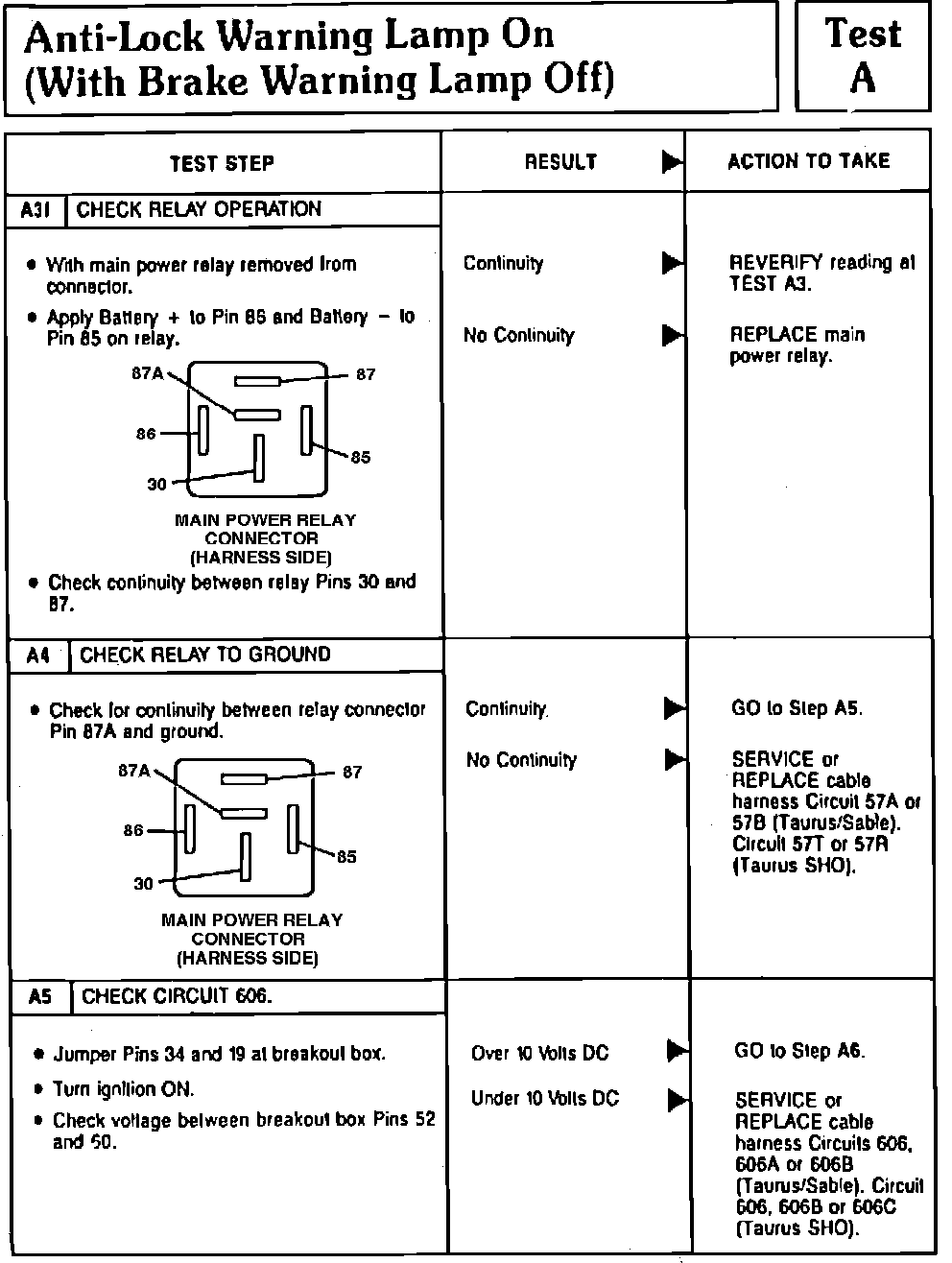

Fig. 98 Tests A3f, A4 & A5 (ABS Lamp On). Sable & Taurus:
