Latch







Removal and Installation

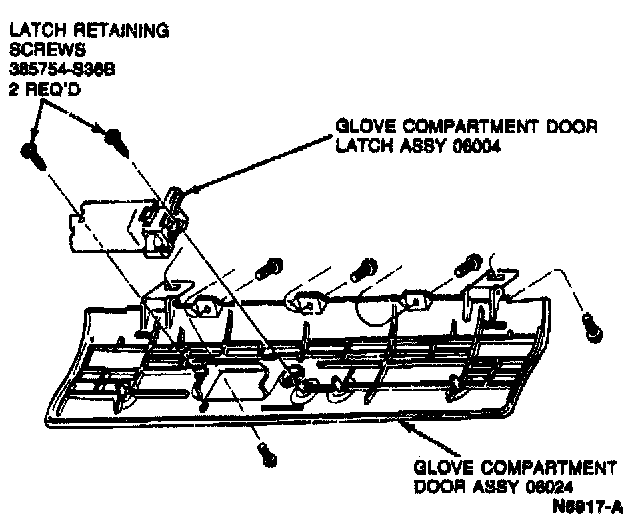

1. To remove latch, remove glove compartment door screws to remove bin and latch retaining screws. To remove door catch, remove bolt. Reverse procedures to install.
